Frontier LP7700 - Position of PCBs (processor section)

Position of PCBs (processor section)
1/2
6. Electrical parts
63200
63200

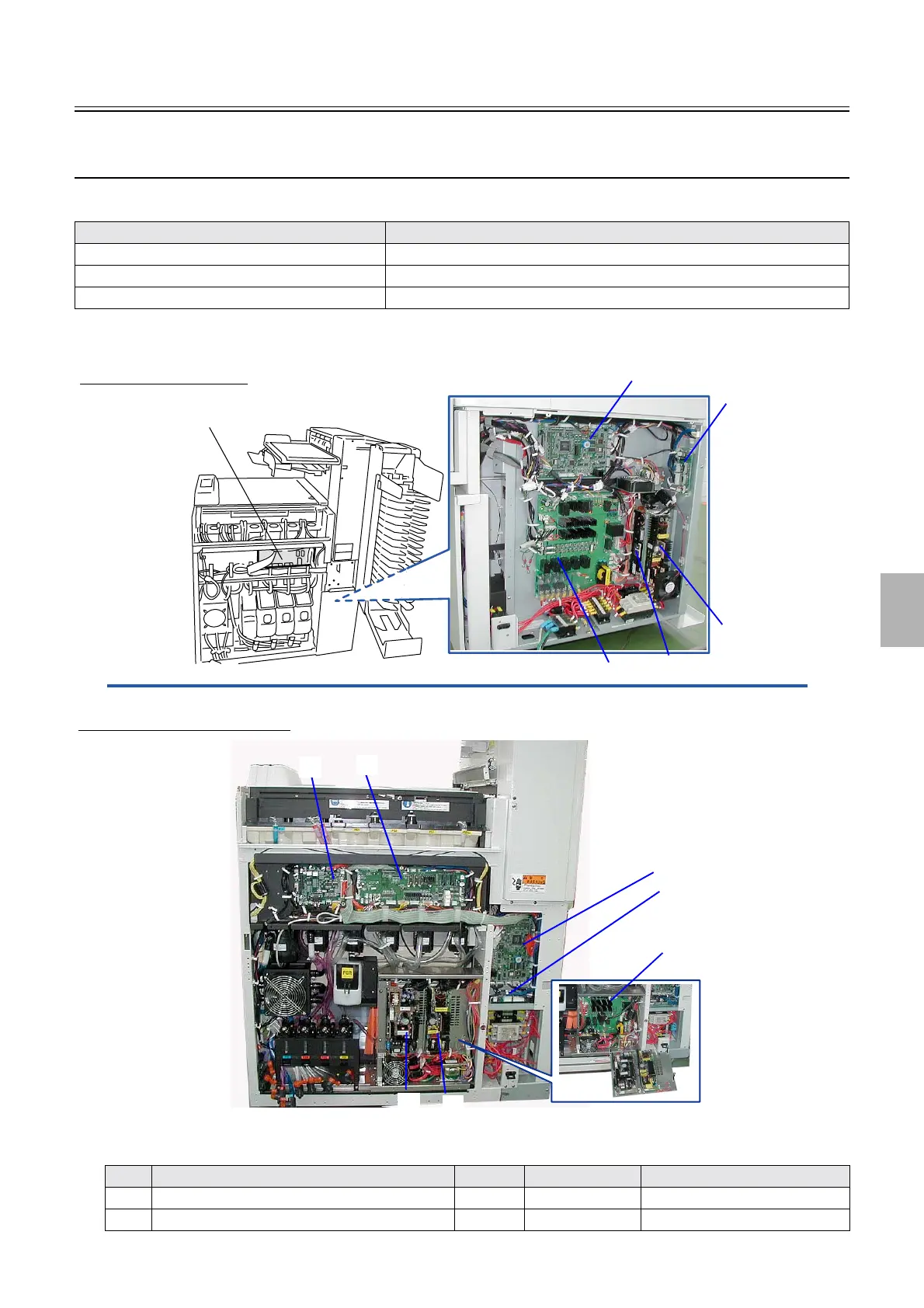

Position of PCBs (processor section)
Processor section (PCB positions) (QSS-3701/3702/3703/LP7500/LP7600)
[F][N][SM][J]
This item varies depending on the specification and model. See the references below.
!
!!
! Layout diagram
Processor section
Model Reference
QSS-3701/3702/3703 [SM] ☞Processor section (PCB positions) (QSS-3701/3702/3703) [SM]
QSS-3701/3702/3703 [J]
☞Processor section (PCB positions) (QSS-3701/3702/3703) [J]
QSS-3704/3705/LP7700/LP7900 [F][N][SM]
☞63201-5
No. Name Symbol Manual No. Remarks
1 Processor control PCB ☞66200
2 Processor I/O PCB 1
☞66210
2
6
5
1
4
QSS-3701/3702/3703 [N][SM][J]
3
G085263
QSS-3701/3702/3703/LP7500/LP7600 [F]
1
4
← Remove the PCB
plate (four screws)
2
7
7
6
3
G085262
