6. Electrical parts
68100
68100
Cables
The ARCNET cable is not connected.
IMPORTANT
• ARCNET communication becomes unstable if the
distance between the ARCNET cable and the light
receiving or emitting element is 0.5 mm or more.
The ARCNET cable is damaged.
• Replace the ARCNET cable or cut the broken part of the
cable.
The optical fiber cable is bent by R25 mm or less.
NOTE
• Lay the cable with a bending radius of at least R50 mm.

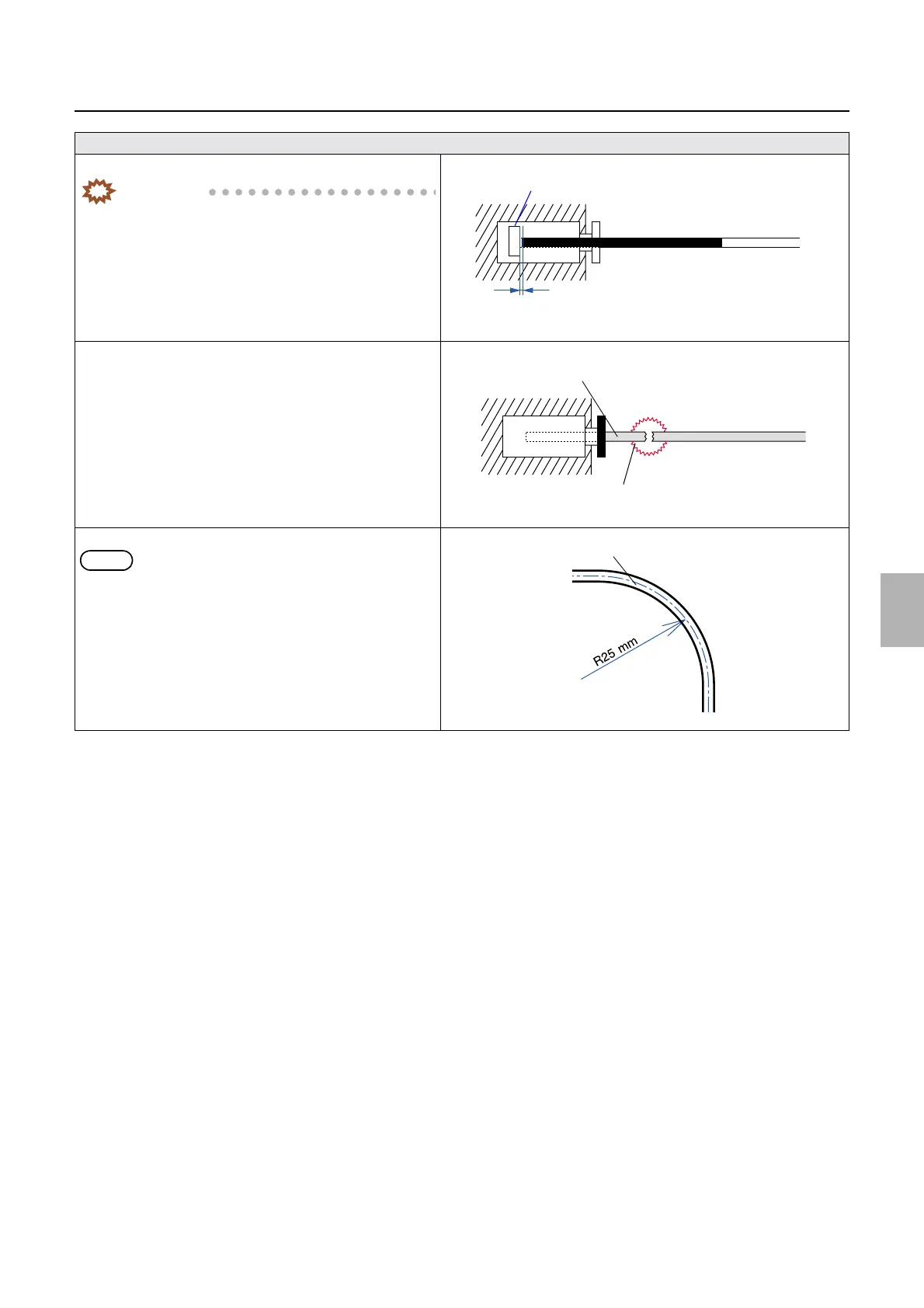

The Factor List of the ARCNET Communication Errors
0.5 mm
The cable is not attached to light receiving or emitting element.
Damaged part
ARCNET cable
ARCNET cable
