2. Replacement and adjustment of parts
25830
25830
Exposure advance unit
3. Use the paper to check that the pressure of the pressure roller at the inlet side is equable at the right
and left.
4. If the adjustment is required, perform the same adjustment as the adjustment for the exposure advance
unit exit roller.

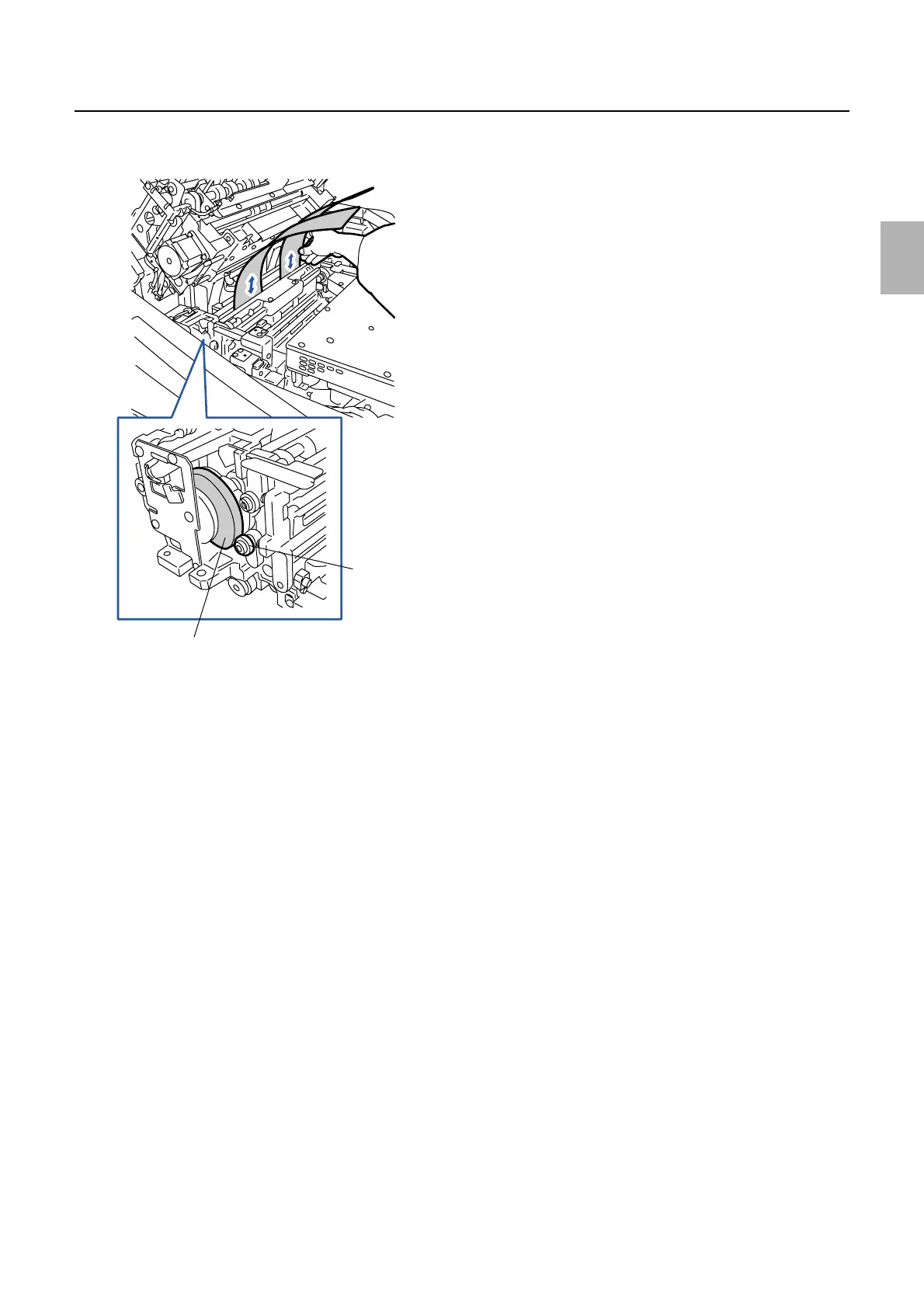

Cam
Pressure roller at
the inlet side
G072397
