2. Replacement and adjustment of parts
25830
5/6
25830
Exposure advance unit
!
!!
! The banding at the area 24 to 27 mm from the paper rear end
1. Turn the cam on the exposure advance unit to release the pressure of the pressure roller at the exit
side.
2. Release the pressure of the pressure roller at the exit side and set the paper. Make fine adjustments of
the cam in the exposure advance unit so that the pressure release amount of the pressure roller at the
inlet side is the thickness of about one sheet of paper.

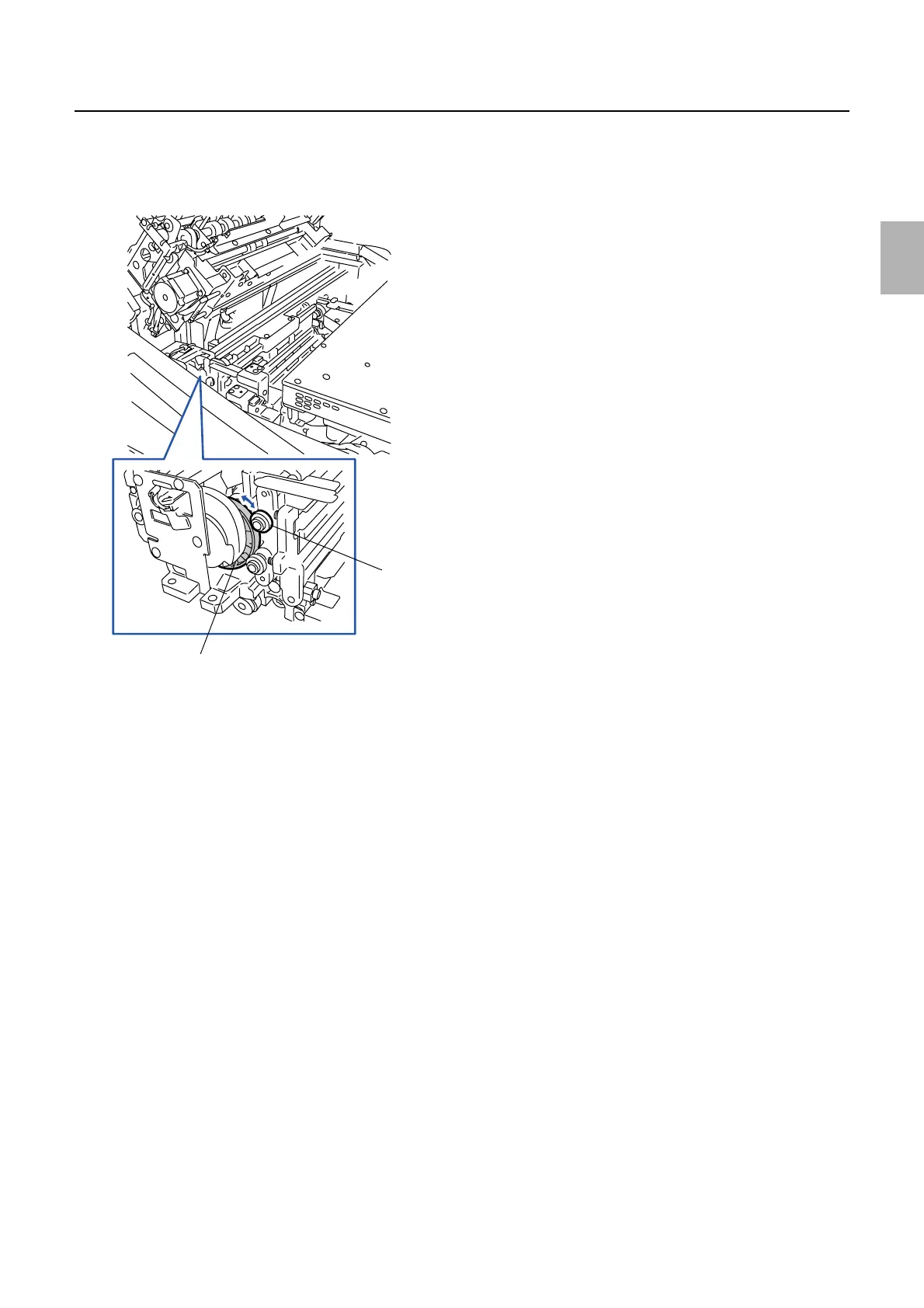

Cam
Pressure roller
at the exit side
G072399
