6.2.2 Removing the dummy cover

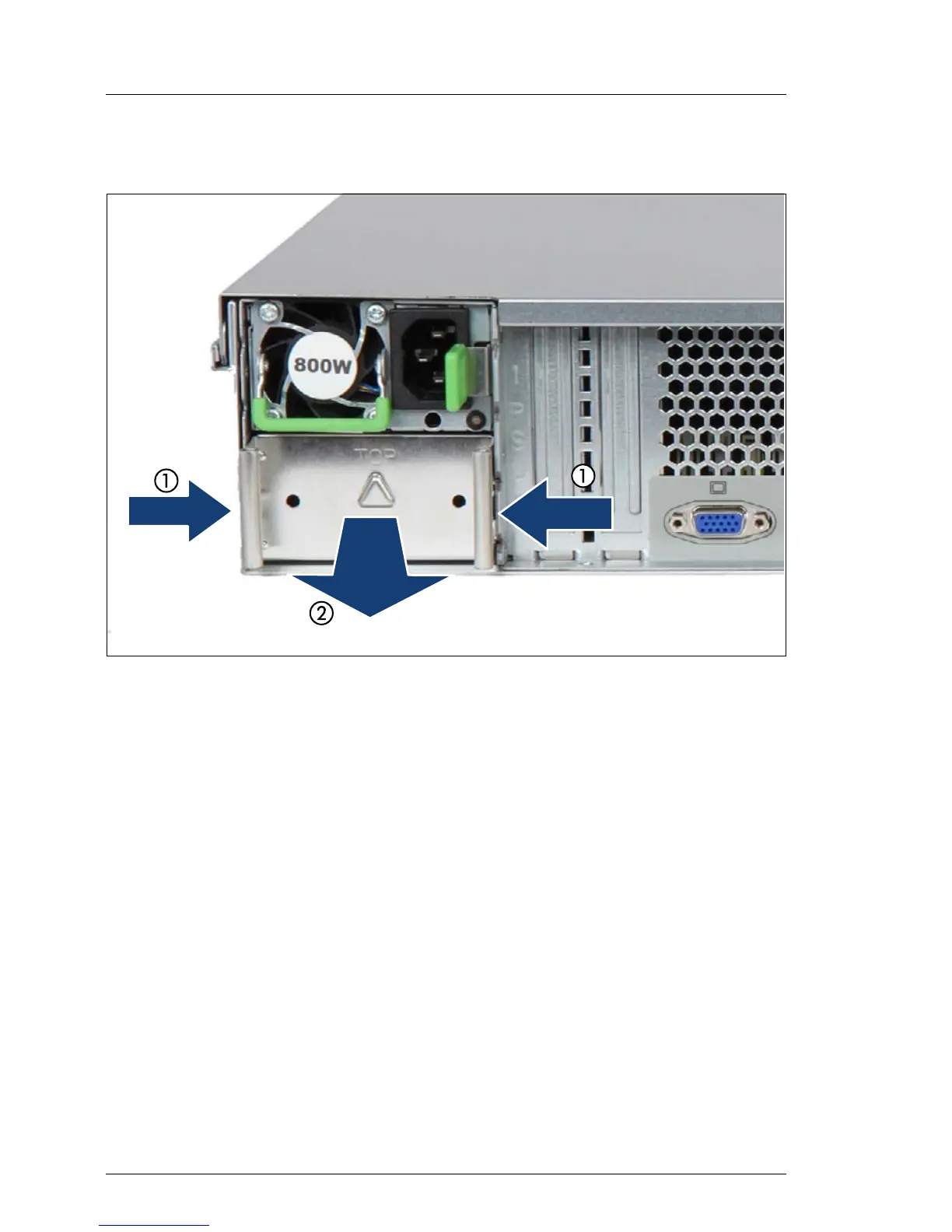

Figure 16: Removing the dummy cover
Ê Press in on both release latches (1) and remove the dummy cover (2).
V CAUTION!
Keep the dummy cover for future use. If a power supply unit is
removed and not immediately replaced by a new one, a dummy cover
must be replaced in the slot to comply with applicable EMC
regulations and satisfy cooling requirements.
