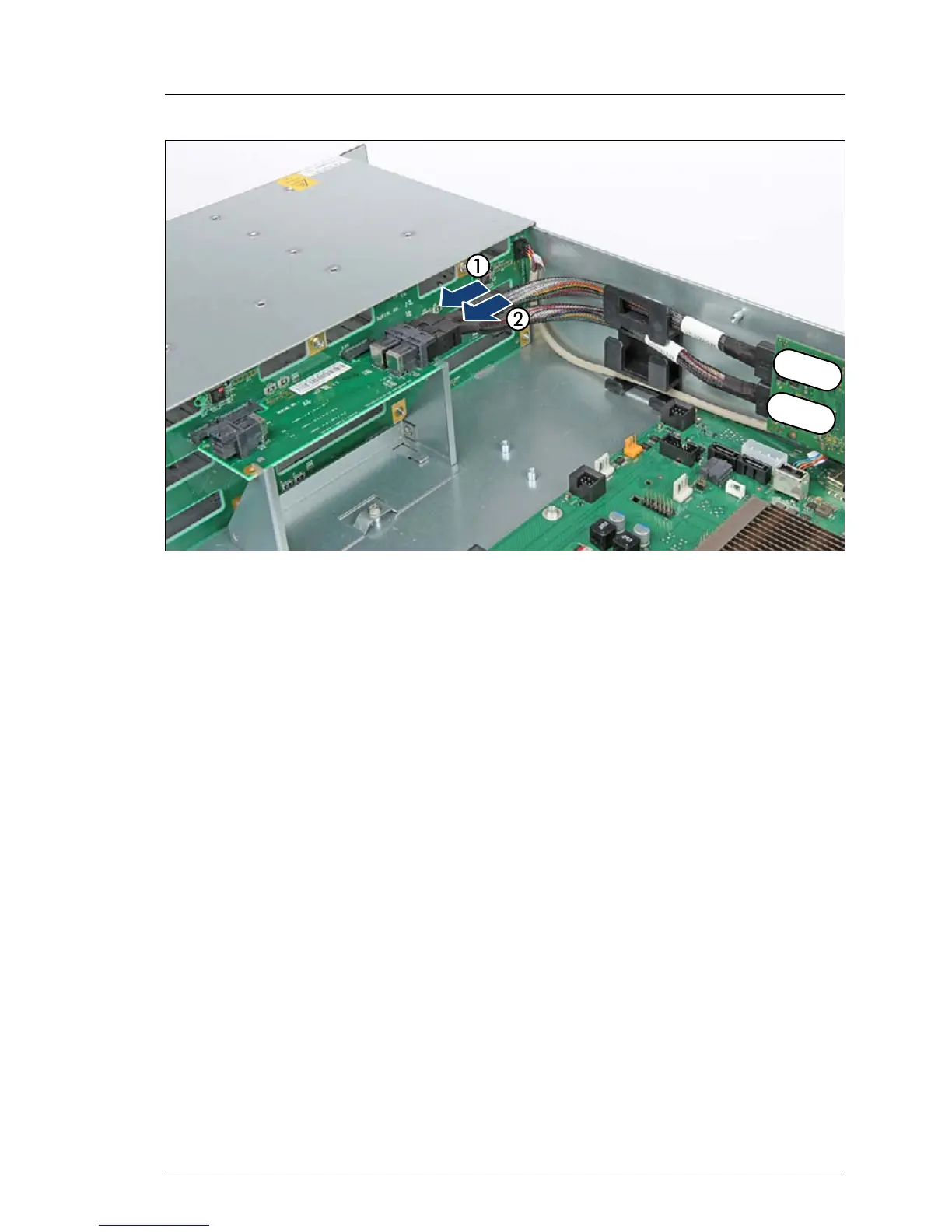

Figure 65: Reconnecting the cables to the pass-through/expander board
Ê Reconnect the SAS cables to the 3.5-inch HDD SAS / SATA backplane:
– Cable C24 from connector MLC1 on the RAID controller to connector X1
front on the pass-through/expander board (1).
– Cable C24 from connector MLC2 on the RAID controller to connector X1
rear on the pass-through/expander board (2).
I For a complete cabling overview, please refer to section "List of used
cables" on page 393.
7.4.3.6 Concluding steps
Ê "Installing the fan box" on page 171
Ê "Reassembling" on page 59
Ê Reinstall all HDD / SSD modules to their original drive bays as described in
section "Installing 3.5-inch HDD modules" on page 136.
Ê "Connecting the server to the power source" on page 64
Ê "Switching on the server" on page 66
Ê "Enabling BitLocker functionality" on page 93
