RX2520 M1 Upgrade and Maintenance Manual 287
Accessible drives
12.7.4 Connecting the RDX drive
12.7.4.1 Connecting the RDX drive to the system board

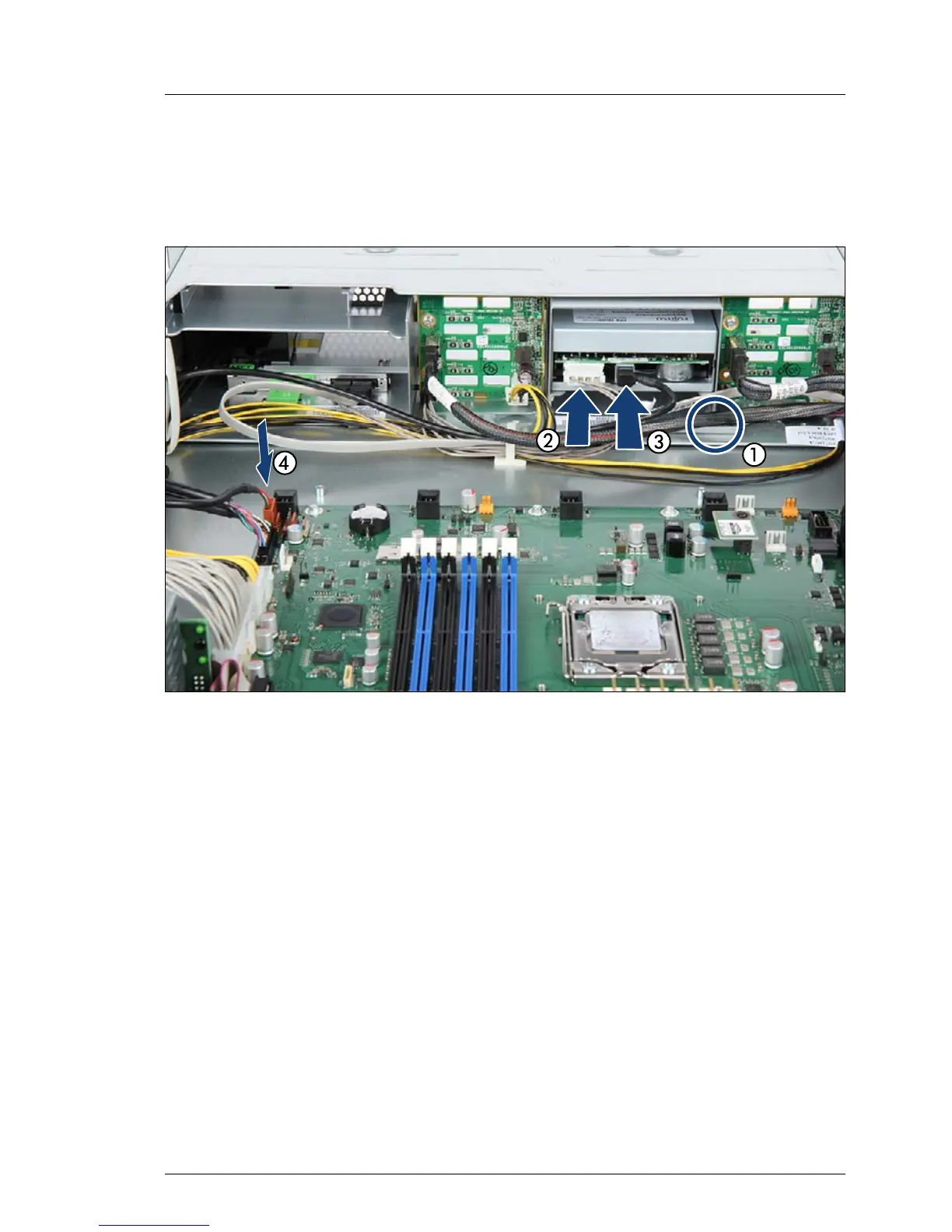

Figure 179: Connecting the cables to the RDX drive
Ê Fasten the drive cage with the screw (1).
Ê Connecting the power cable C5 to the RDX drive (2).
Ê Connecting the USB cable C17 to the RDX drive (3).
Ê Connect the USB cable C17 to the connector USB INT1 on the system
board (4).
Ê Route the cables as shown.
12.7.4.2 Connecting the RDX drive to the USB 3.0 interface card
Ê Install the USB 3.0 interface card, see section "Installing a slot bracket to the
USB 3.0 interface card D3305" on page 181 and section "Installing an
expansion card" on page 184.
