Fujitsu PRIMERGY RX2520 M1 - Connectors and Indicators; Connectors and Indicators on the System Board; Onboard Connectors

RX2520 M1 Upgrade and Maintenance Manual 415
Appendix
17.3 Connectors and indicators
17.3.1 Connectors and indicators on the system board
17.3.1.1 Onboard connectors

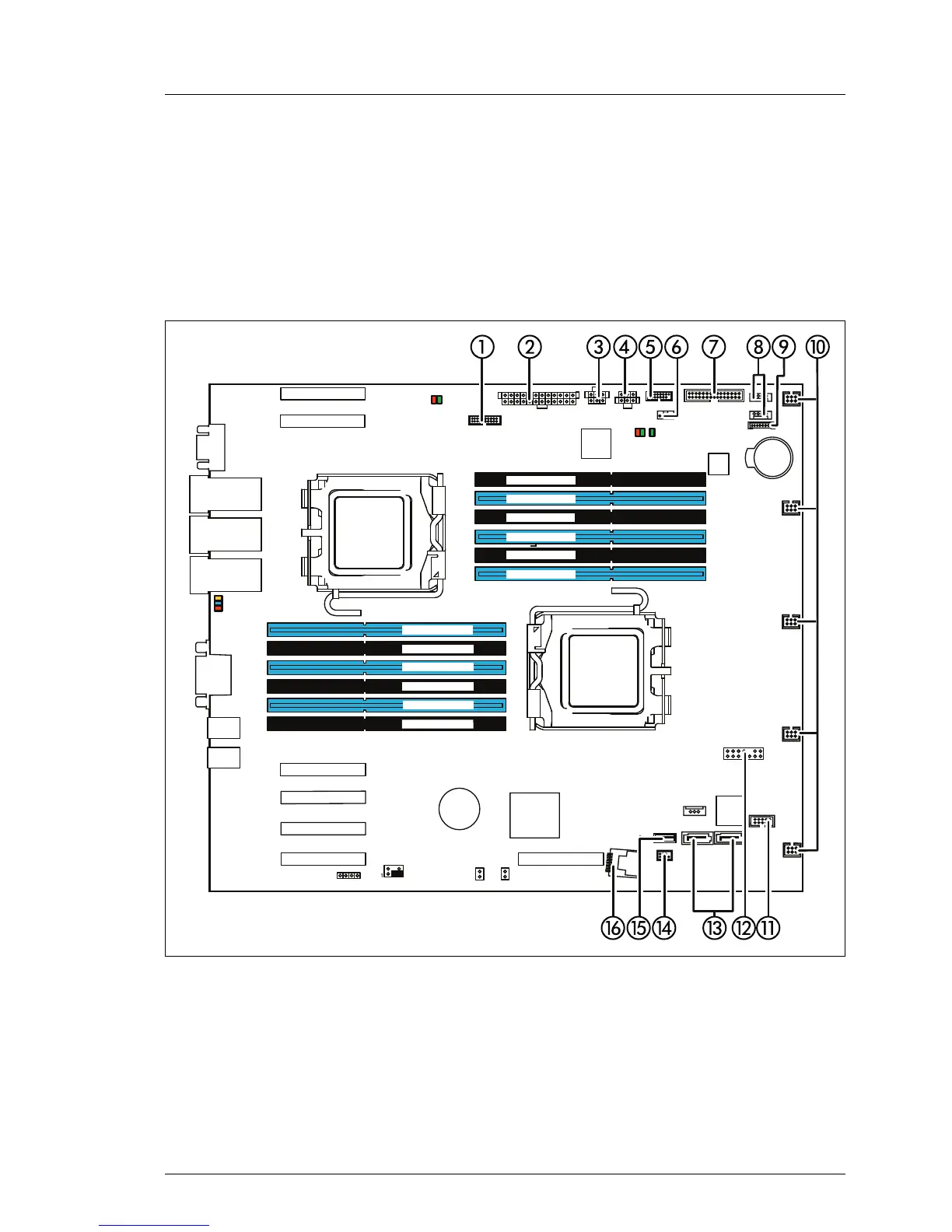

Figure 290: Internal connectors of system board D3169
CPU 1
CPU 2
external connectors
Management
LAN
LAN 2
Shared LAN
CPU 2 DIMM 1D
CPU 2 DIMM 2D
CPU 2 DIMM 2F
CPU 2 DIMM 1F
CPU 2 DIMM 2E
CPU 2 DIMM 1E
CPU 1 DIMM 1A
CPU 1 DIMM 2A
CPU 1 DIMM 2B
CPU 1 DIMM 1C
CPU 1 DIMM 1B
CPU 1 DIMM 2C
VGA
Serial 1
SKU Key
FAN 1
FAN 4
FAN 2
TPM
1
SATA 1
SATA 2
USB INT2
USB INT1
HDD LED
PWR
HDD/ODD2
PWR
HDD/ODD1
Front Panel
PCH
iRMC
Slot 2 PCIe x8
(mech. x8)
Slot 3 PCIe x8 (mech. x8)
Slot 1 PCIe x4 (mech. x8)
Slot 4* PCIe x8 (mech. x8)
Slot 5* PCIe x8 (mech. x8)
Slot 6* PCIe x8 (mech. x8)
Slot 7 PCIe x8 (mech. x8)
FAN 3
Battery
SAS 1-4
UFM
USB
stick
SMB 4
PWR
Front VGA
PWR CTRL
Buzzer
USB
1/2
USB
3/4
LAN 1 /
iRMC
micro
SSD
BIOS
BIOS-WP JP8
JP1
SMB 1
Frontpanel
FAN 5
