RX2520 M1 Upgrade and Maintenance Manual 135
Hard disk drives / solid state drives
7.3.1.3 HDD mounting order for 12x 3.5-inch HDD configurations

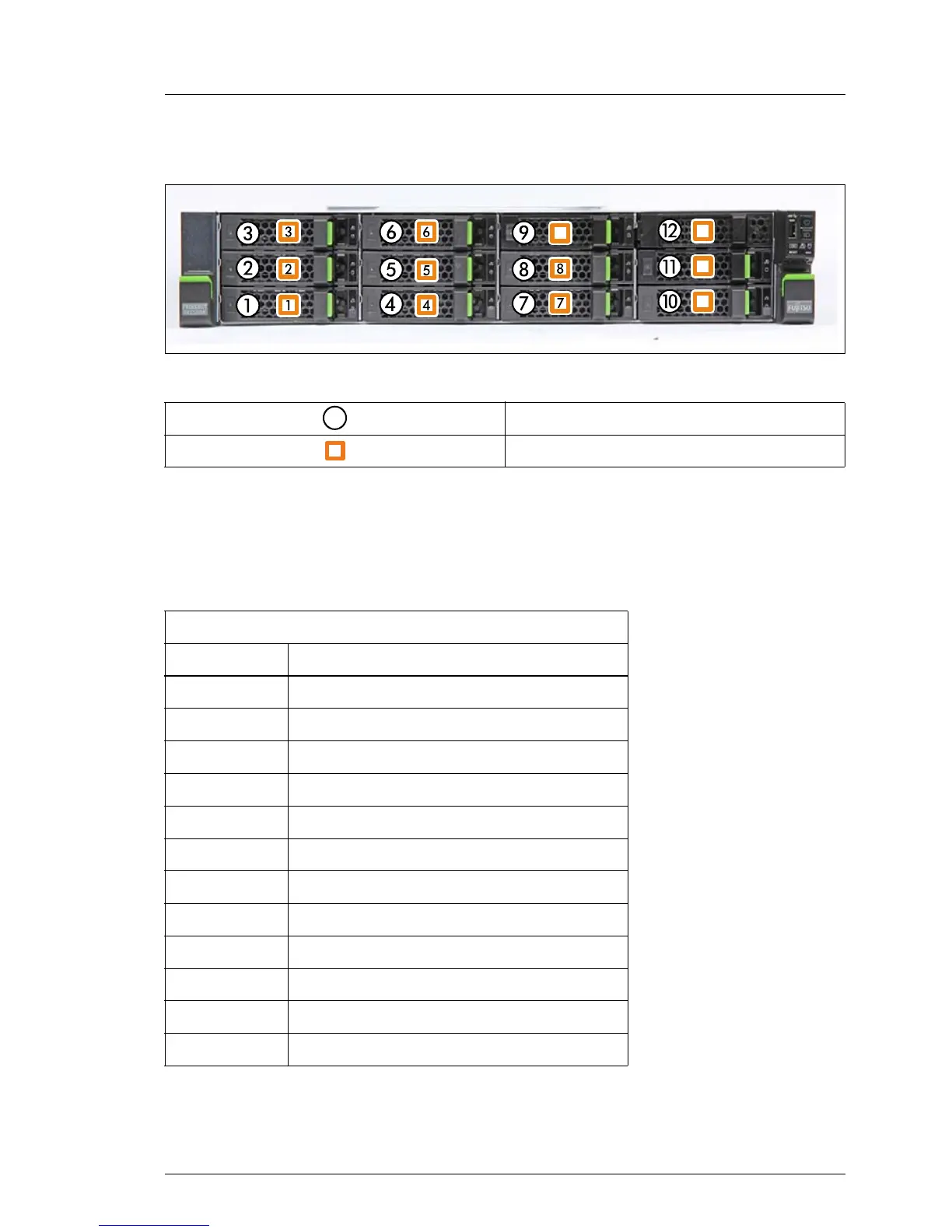

Figure 42: 3.5-inch HDD mounting order configuration 9
7.3.1.4 HDD naming scheme for 12x 3.5-inch HDD configurations
I The HDD numbering as listed in the ServerView RAID Manager differs
from the HDD mounting order:
Mounting order
Bay number
3.5-inch HDDs / SSDs
HDD bay RAID Manager #
1 [0]
2 [1]
3 [2]
4 [3]
5 [4]
6 [5]
7 [6]
8 [7]
9 [8]
10 [9]
11 [10]
12 [11]
Table 9: HDD naming scheme
9
10
11
12
