302
Upgrade and Mai
ntenance Manual
RX2520
M1
Accessible drives
12.1
1.2
R
emoving the drive ca
ge

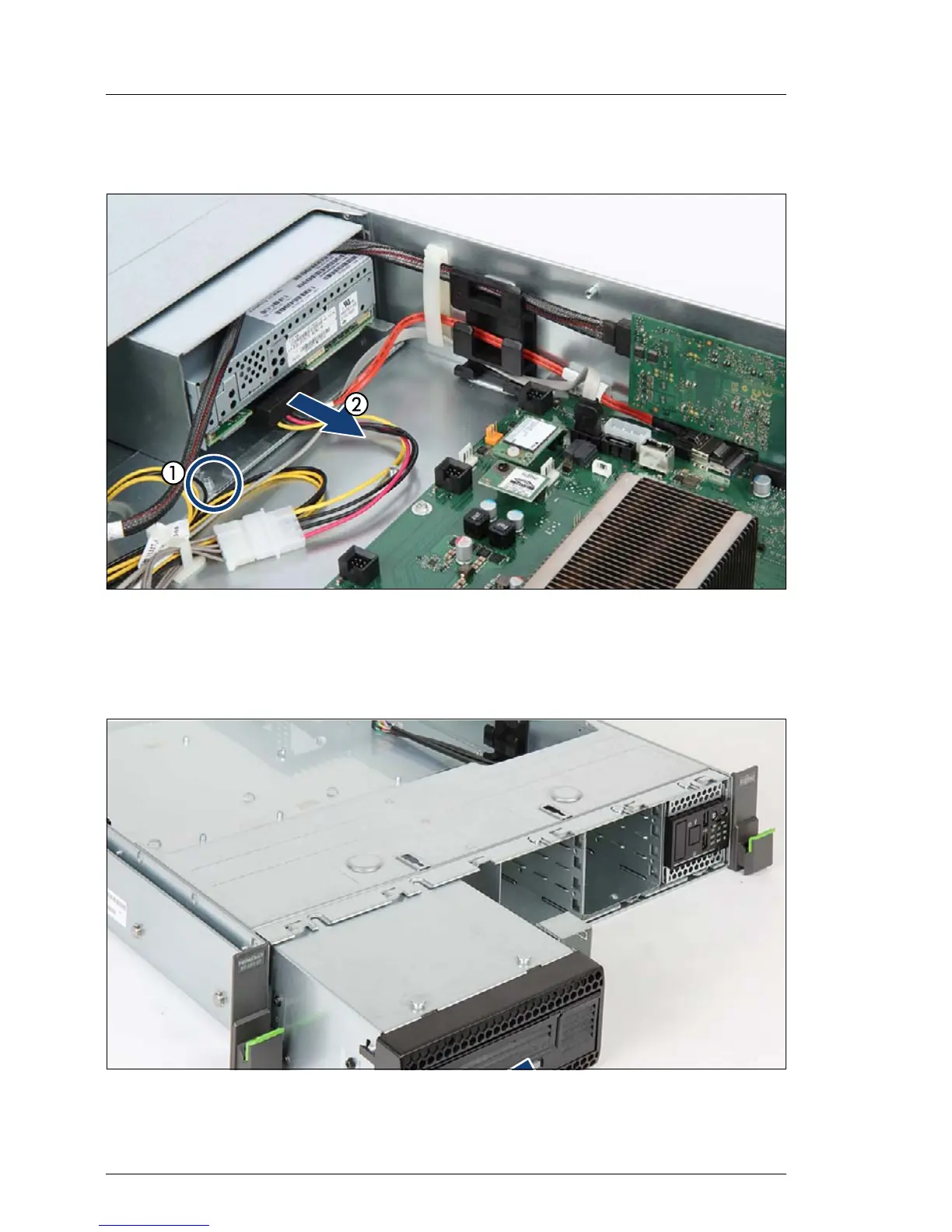

Figure 196: Unlock
ing the drive cage
Ê
Remove the screw that fixed the drive cage in the bay
(1).
Ê
Remove the cable from the L
TO drive
(2).
Figure 197: Removing the drive cage
Ê
Pull the drive cage out of the bay
.
