256 Upgrade and Maintenance Manual
RX2520 M1
Accessible drives
Ê "Getting access to the component" on page 53
Ê "Removing the fan box" on page 168
12.2.2 Removing the LSD dummy cover

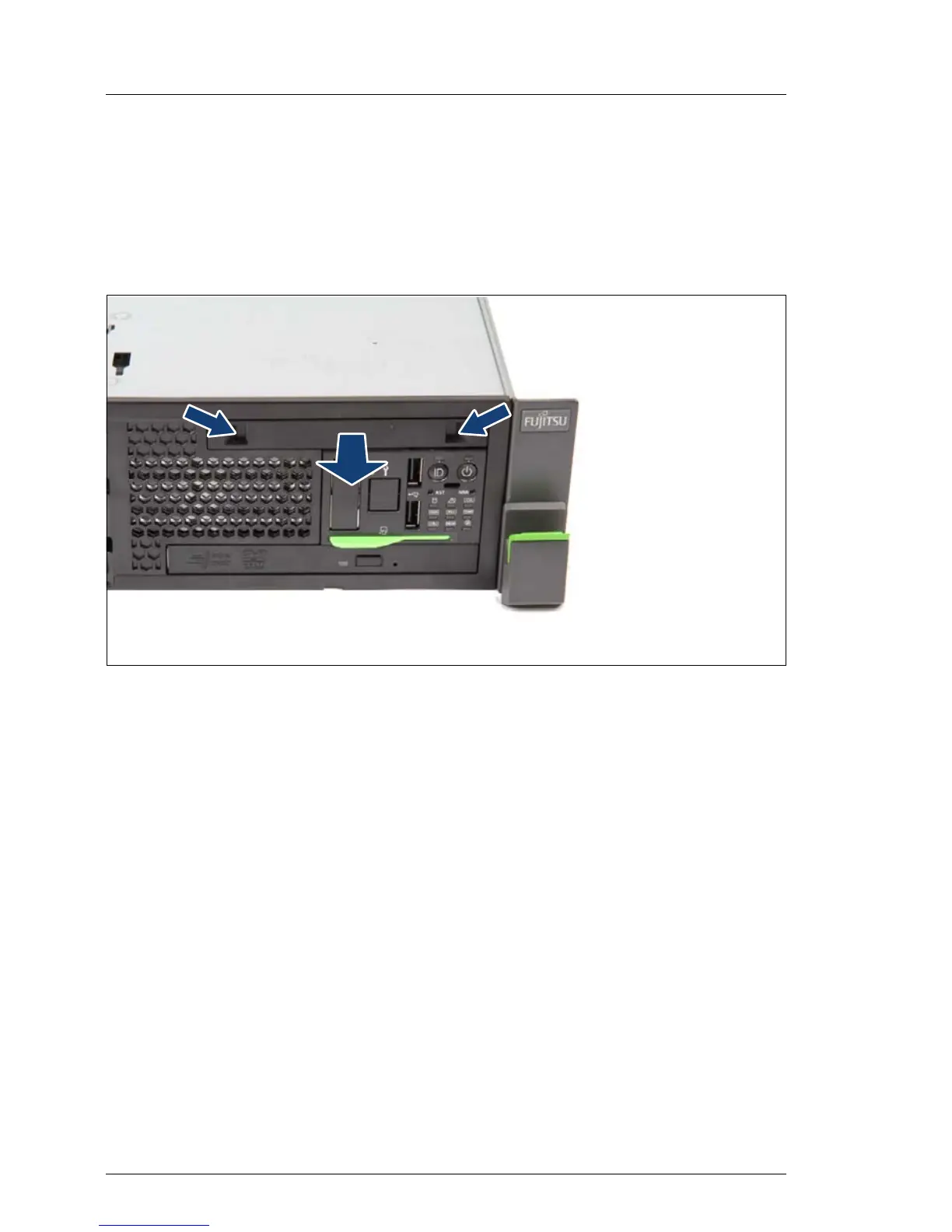

Figure 145: Removing the LSD dummy cover
Ê Take the LSD dummy cover by the two recessed grips and pull out the LSD
dummy cover.
V CAUTION!
Save the LSD dummy cover for future use.
Always replace dummy covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
