Hard disk drives / solid state drives
7.4.3.5 Installing the pass-through/expander board

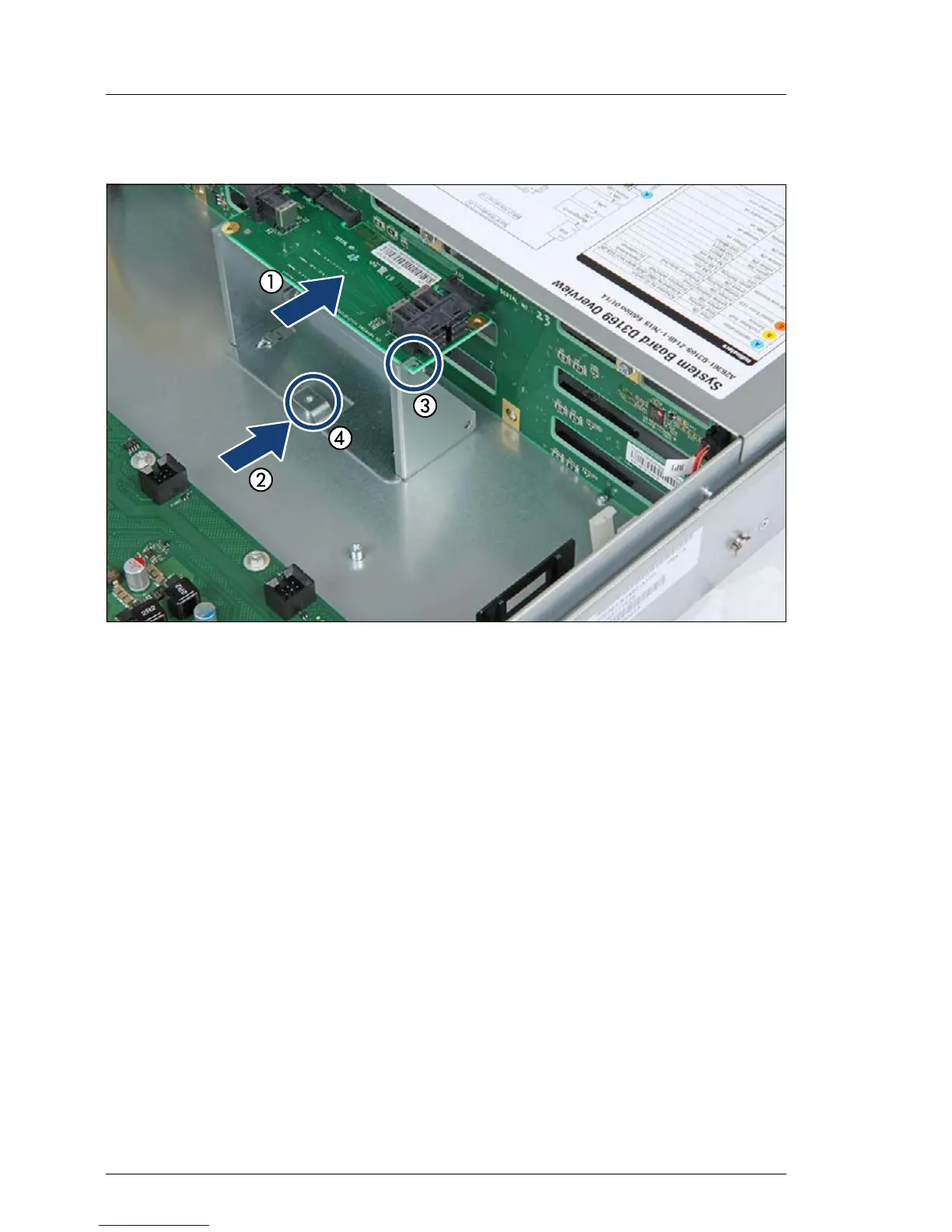

Figure 64: Installing the pass-though/expander board
Ê Insert the pass-through/expander board (1).
Ê Insert the holder (2).
Ê Push the holder in place so that the board is fastened (3).
Ê Fasten the holder with a screw (4).
