RX2520 M1
Upgrade and Maintenance Manual 123
Hard disk drives / solid state drives
7.2.1.1 HDD / SSD mounting order for 4x 2.5-inch HDD / SSD
configuration

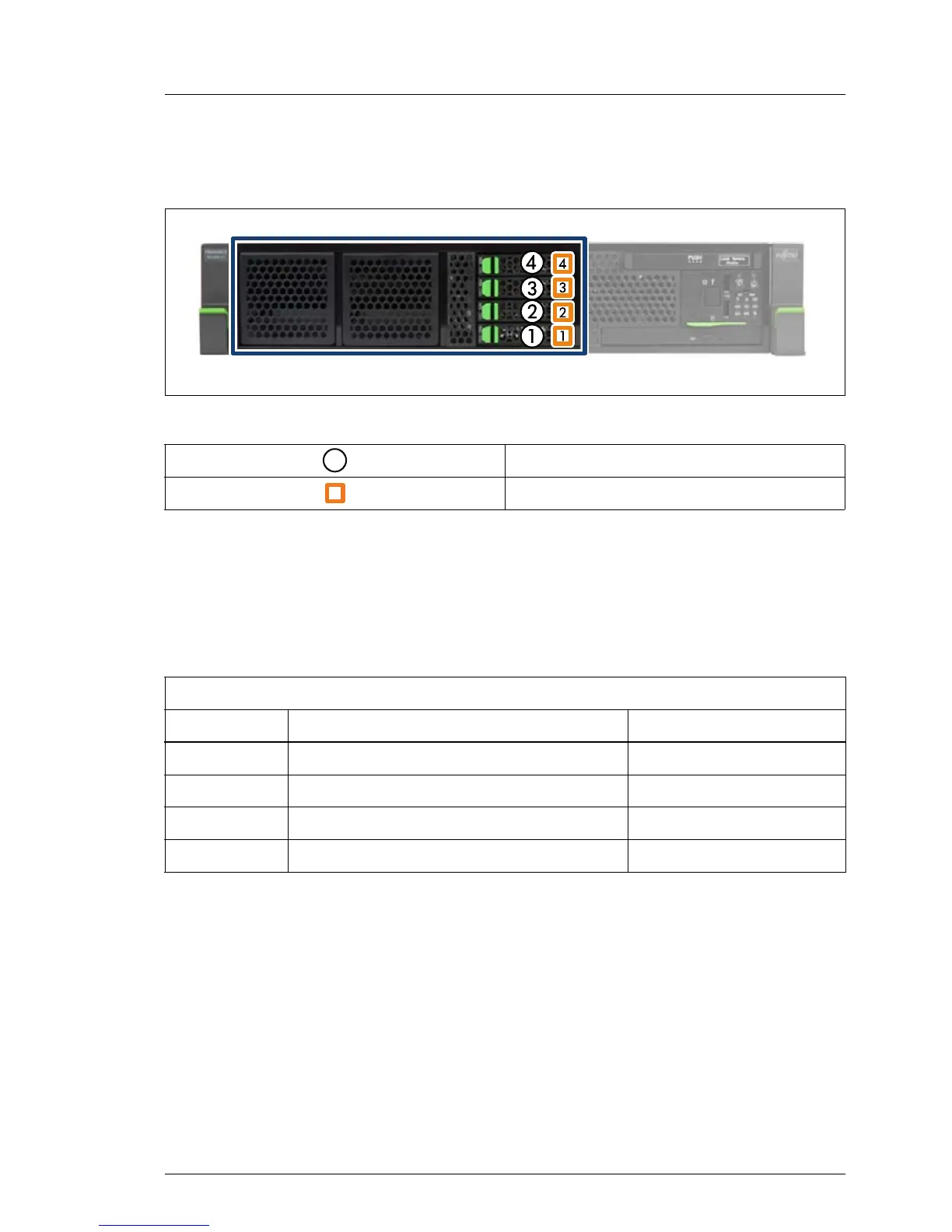

Figure 29: 2.5-inch HDD / SSD mounting order configuration 2 and 3
7.2.1.2 HDD / SSD naming scheme for 4x 2.5-inch HDD / SSD
configuration
I The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
Mounting order
Bay number
2.5-inch HDDs / SSDs
HDD bay RAID Manager # Channel
1 [0] 1
2 [1] 1
3 [2] 1
4 [3] 1
Table 4: HDD naming scheme
