Ê At a slight angle, unhinge the 12x 2.5-inch HDD SAS backplane from the
guides on the drive cage and remove it.
7.4.2.3 Installing the 12x 2.5-inch HDD SAS backplane

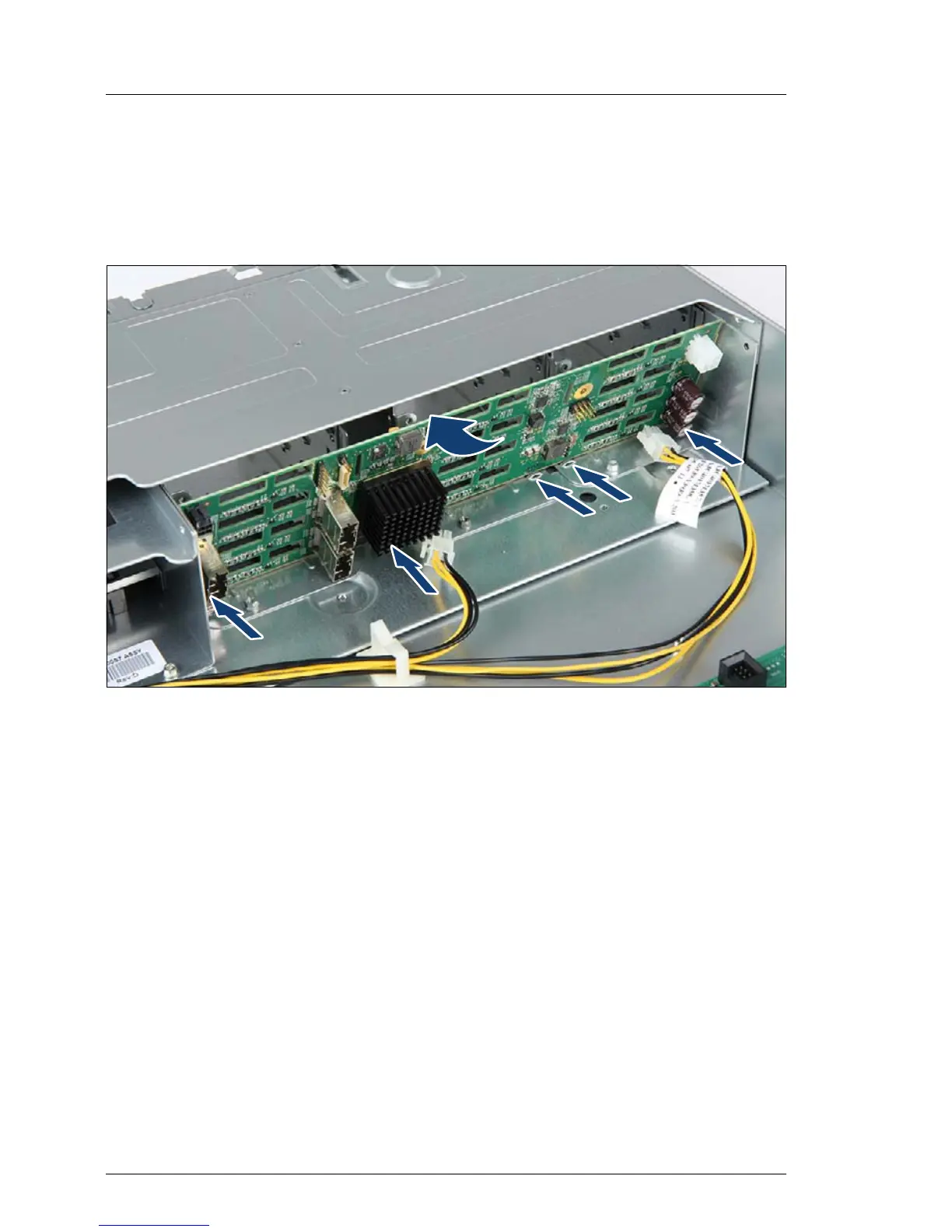

Figure 55: Installing the 12x 2.5-inch HDD SAS backplane (A)
Ê At a slight angle, fit the 12x 2.5-inch HDD SAS backplane into the guides on
the bottom of the chassis.
Ê Fold in the 12x 2.5-inch HDD SAS backplane.
Ê Shift it slightly to the right to engage the nose
