Fujitsu PRIMERGY RX2520 M1 - Removing the Air Duct with an FBU; Removing the FBU Holder from the Air Duct

RX2520 M1 Upgrade and Maintenance Manual 207
Expansion cards and backup units
9.5.3.2 Removing the air duct with an FBU

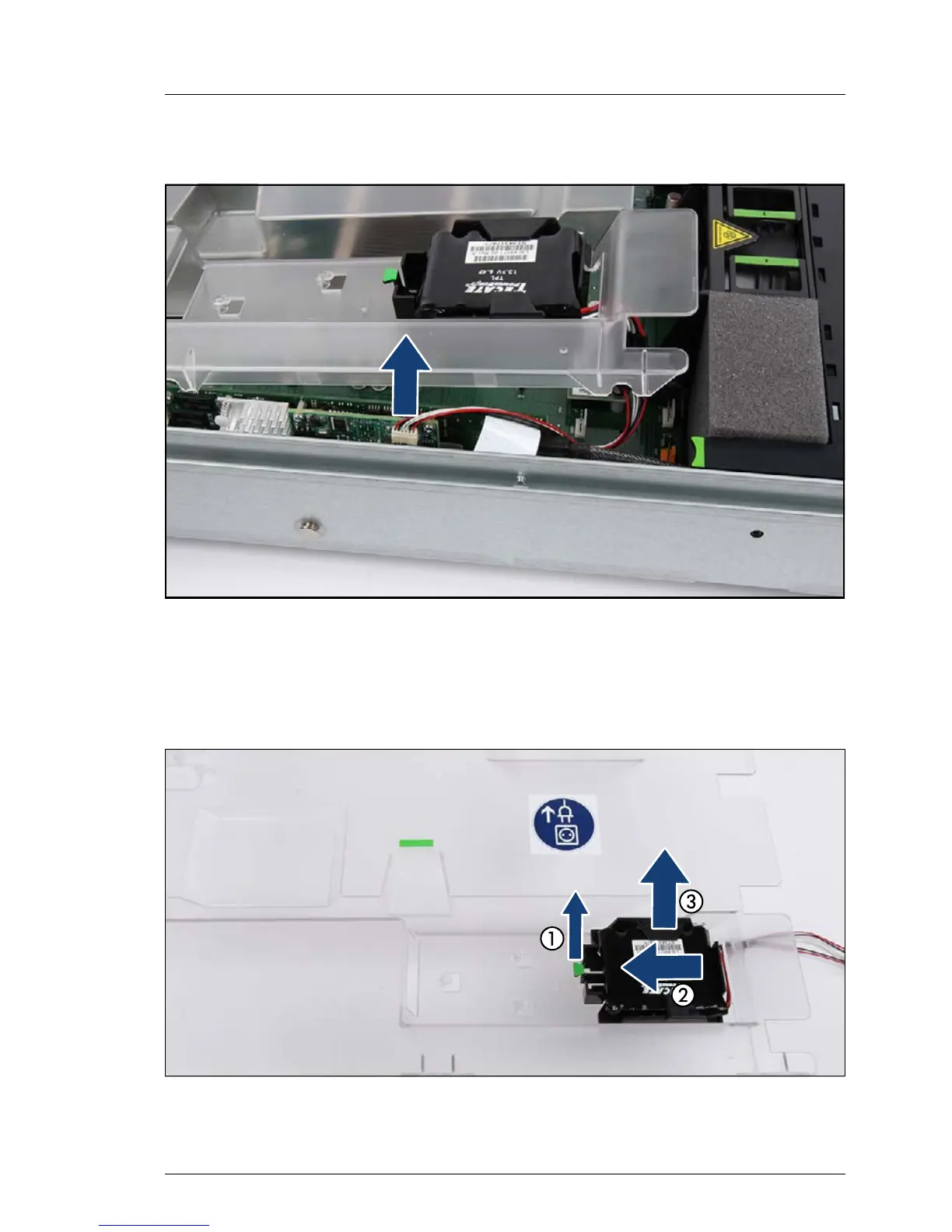

Figure 103: Disconnecting the FBU cable
Ê Carefully disconnect the FBU cable from the RAID controller (see arrow).
9.5.3.3 Removing the FBU holder from the air duct
Figure 104: Removing the FBU holder from the air duct
