Fujitsu PRIMERGY RX2520 M1 - Installing the TPM

RX2520 M1 Upgrade and Maintenance Manual 347
System board and components
14.4.1.2 Installing the TPM

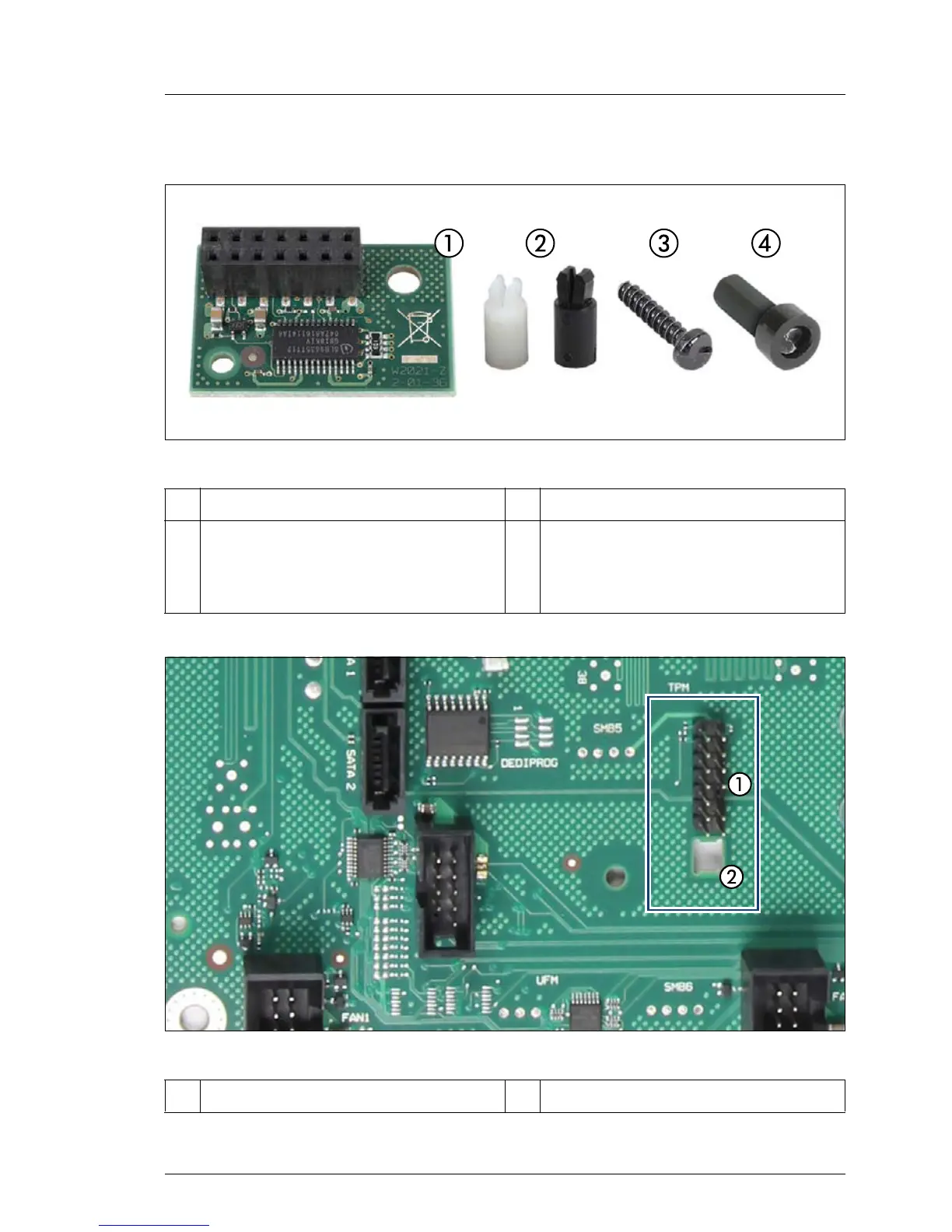

Figure 236: TPM kit
Figure 237: TPM mounting location
1 TPM (Trusted Platform Module) 3 Special screw for TPM
2 TPM spacer
I The black TPM spacer is
not used in this server.
4 TPM bit insert for TPM special
screw
1 TPM connector 2 Cut-out for TPM spacer
