RX2520 M1
Upgrade and Maintenance Manual 257
Accessible drives
12.2.3 Installing a LSD module

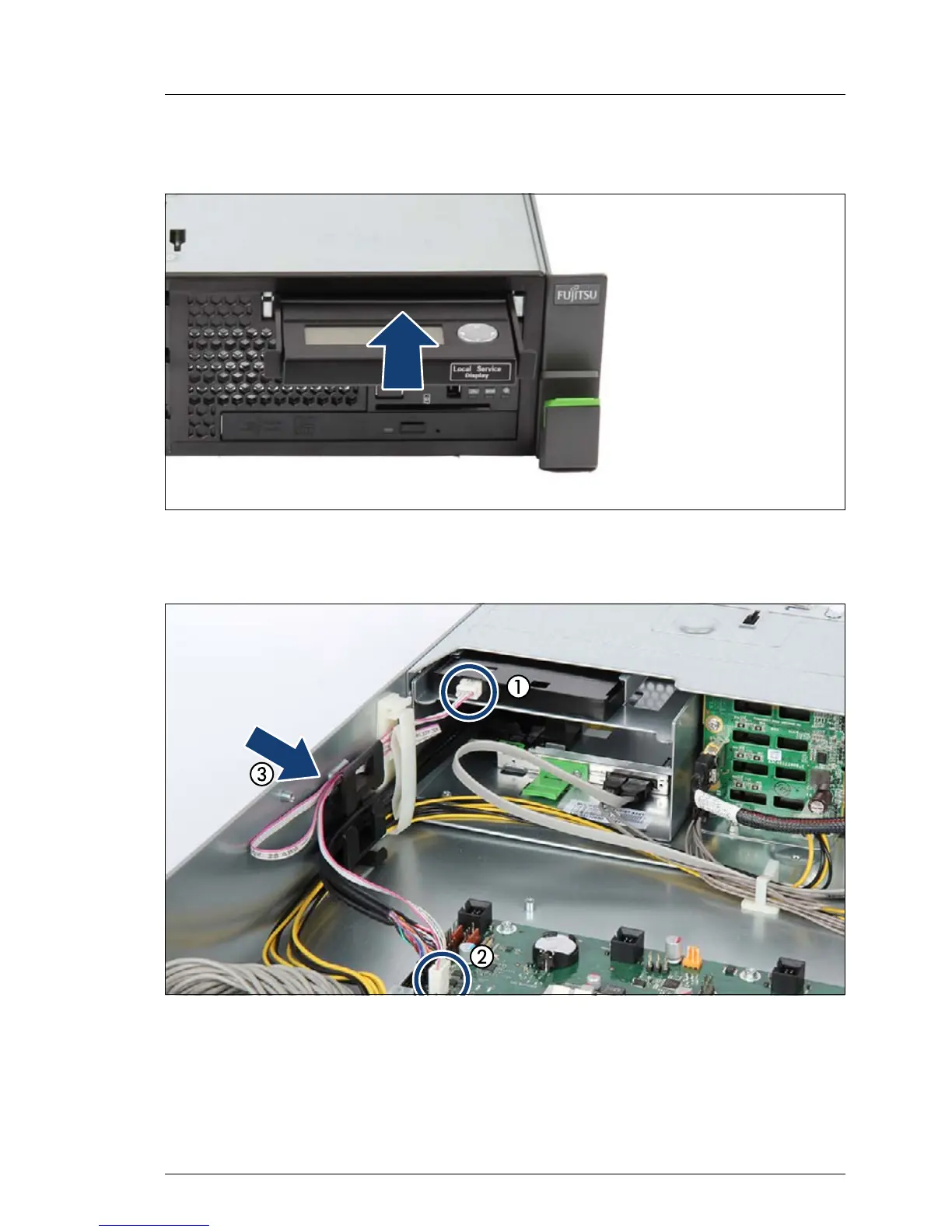

Figure 146: Installing the LSD module
Ê Insert the LSD module into the bay and push in until it locks in place.
Figure 147: Installing the LSD module
Ê Connect the LSD cable to the LSD module (1).
Ê Connect the LSD cable to the connector SMB1 of the system board (2).
Ê Route the LSD cable through the upper cable guide (3).
