11.2.2.1 Removing the protective cover

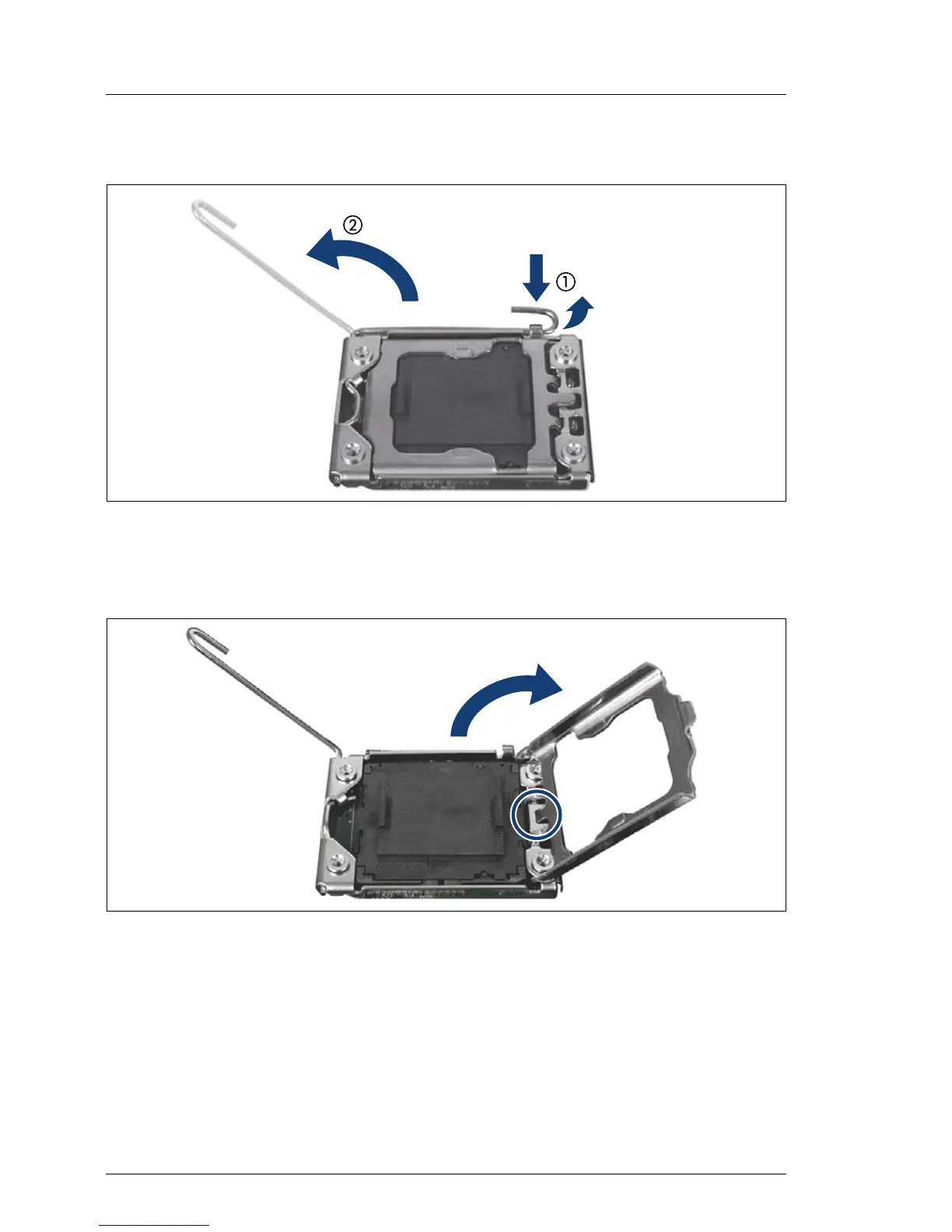

Figure 122: Opening socket release lever
Ê Unlatch the socket release lever by pushing it down and away from the
socket (1) and then swivel it up (2)K
Figure 123: Opening the load plate
Ê Open the load plate of the processor socket.
V CAUTION!
Handle the locking frame carefully.
In a vertical position, the small clip (see circle) can scratch the system
board.
