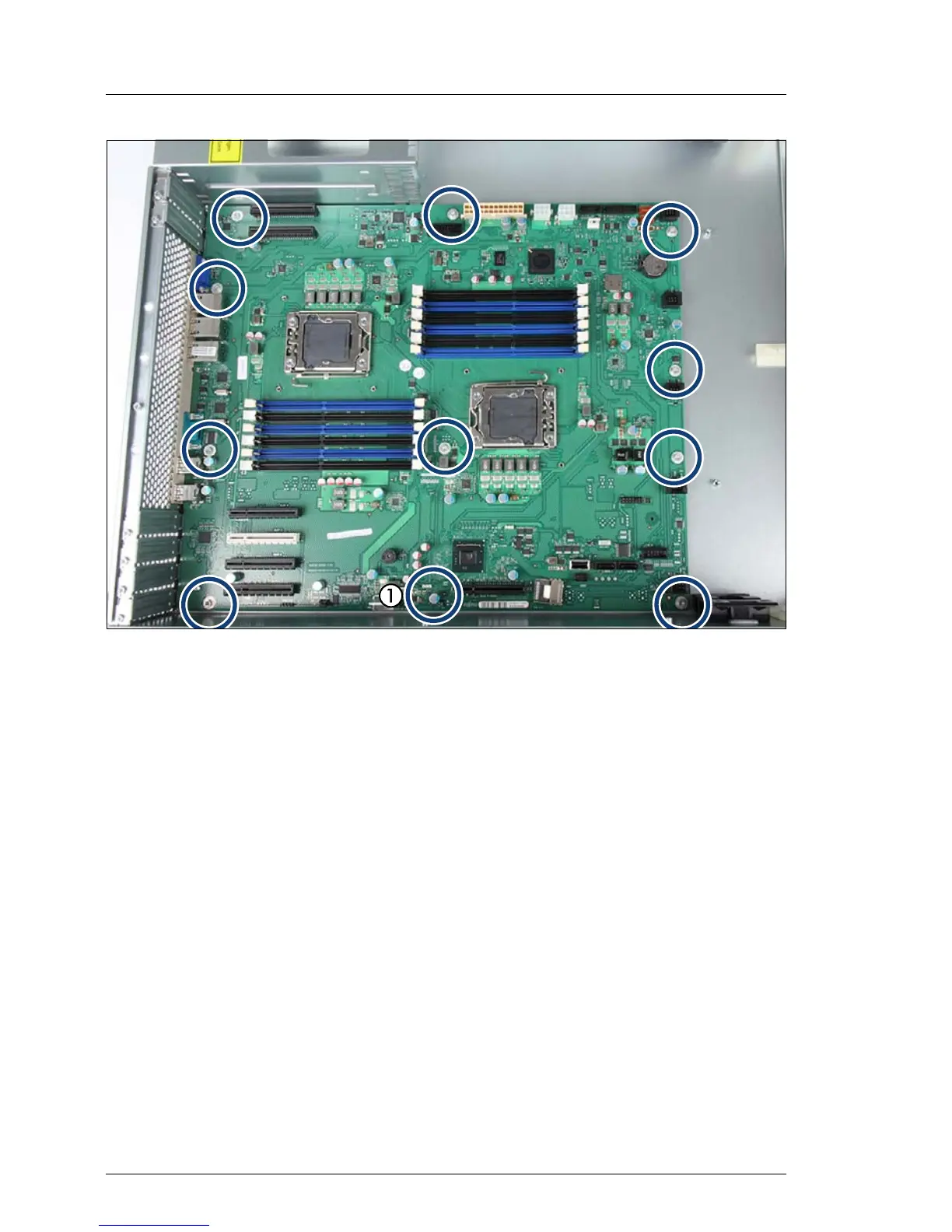

Figure 250: Securing the system board
Ê Secure the system board with 11 screws (M3 x 6 mm, C26192-Y10-C68)
(see circles).
I If you want to install a SAS RAID controller, do not insert the screw
markt with (1).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
Ê Verify the settings on the new system board (see figure "Onboard settings"
on page 430).
14.6.3.2 Swapping processors
Preparing the processor socket load plates on the new system board
Ê "Removing the protective cover" on page 234
