RX2520 M1
Upgrade and Maintenance Manual 235
Processors

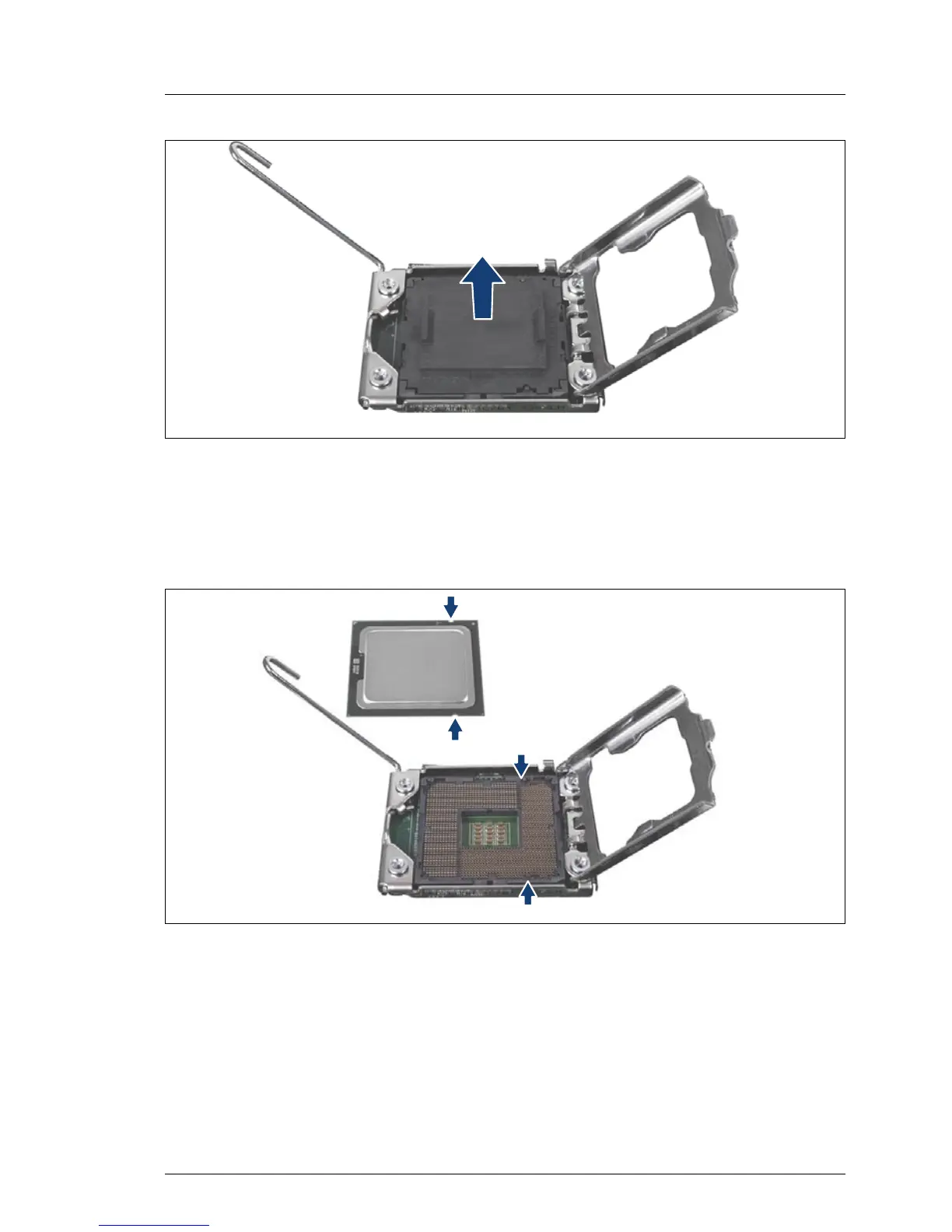

Figure 124: Removing the protective cover
Ê Remove the black protective cover from the processor socket.
11.2.2.2 Installing the new processor
Figure 125: Installing the processor
I Notice the coding!
Ê Hold the processor with your thumb and index finger.
Ê Place the new processor on the socket.
