Fujitsu PRIMERGY RX2520 M1 - Installing the Onboard SAS Enabling Key

RX2520 M1 Upgrade and Maintenance Manual 359
System board and components
14.5.1.2 Installing the onboard SAS enabling key

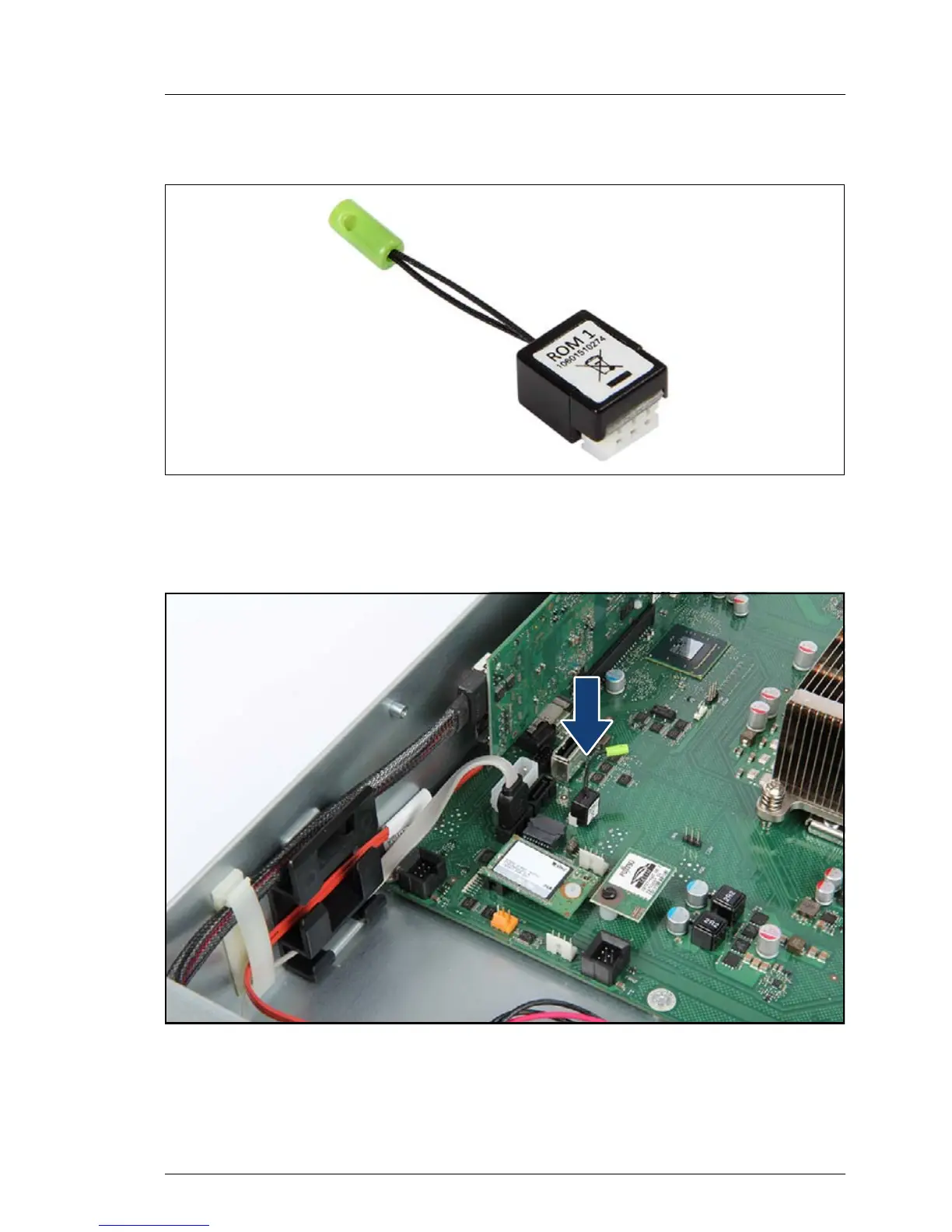

Figure 244: onboard SAS enabling key
Ê Locate the onboard SAS enabling key mounting location on the system
board.
Figure 245: Onboard SAS enabling key mounting location
Ê Connect the onboard SAS enabling key to system board connector "SKU
key".
