Fujitsu PRIMERGY RX2520 M1 - Installing the 4 X 2.5-Inch HDD SAS Backplane

144 Upgrade and Maintenance Manual RX2520 M1
Hard disk drives / solid state drives
7.4.1.3 Installing the 4x 2.5-inch HDD SAS backplane

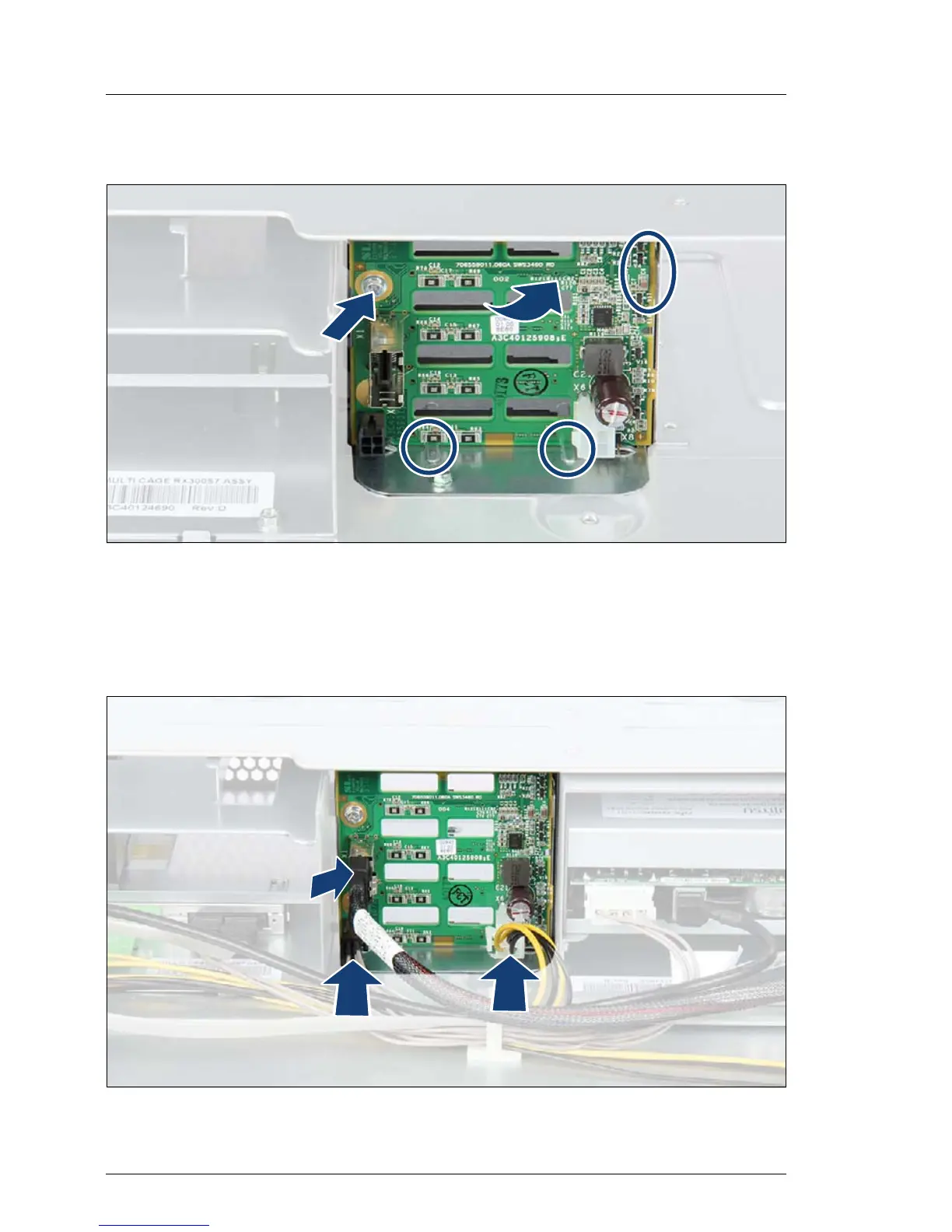

Figure 50: Installing the 2.5-inch HDD SAS backplane
Ê Insert the 4x 2.5-inch HDD SAS backplane in that way that it is in the guiding
recesses (see circles).
Ê Fasten the 4x2.5-inch HDD SAS backplane with the screw (see arrow).
Figure 51: Reconnecting cables to the 4x 2.5-inch HDD SAS backplane
