RX2520 M1
Upgrade and Maintenance Manual 321
Front panel and external connectors
13.2.2.3 Removing the front VGA connector

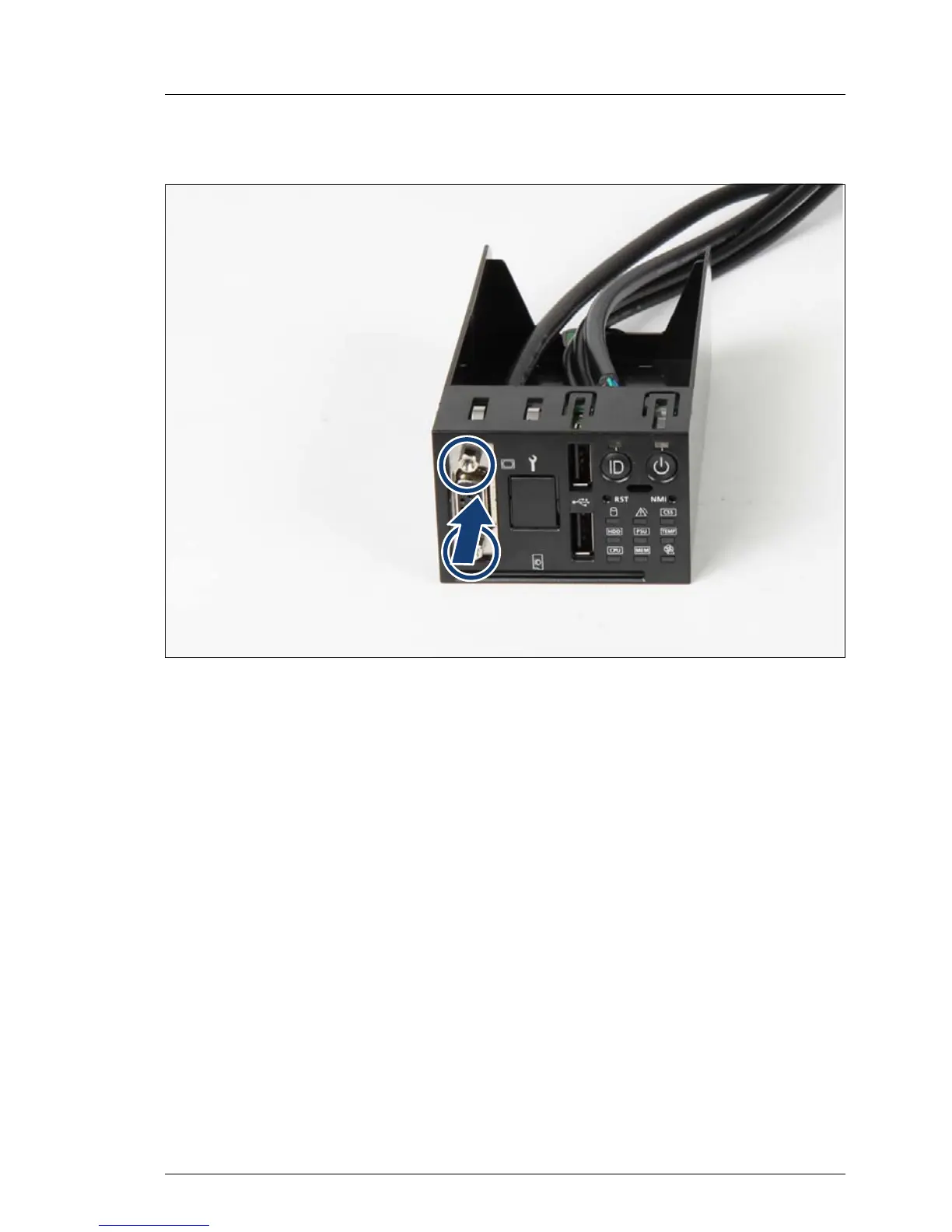

Figure 214: Removing front VGA connector from the front panel module
Ê Remove two hexagon bolts.
Ê Push the VGA connector out of the front panel module.
13.2.2.4 Re-installing the front panel module
Ê "Installing the front panel module" on page 313
13.2.2.5 Concluding steps
Ê "Installing the fan box" on page 171
Ê "Reassembling" on page 59
Ê "Connecting the server to the power source" on page 64
Ê "Switching on the server" on page 66
Ê "Enabling BitLocker functionality" on page 93
