330 Upgrade and Maintenance Manual RX2520 M1
Front panel and external connectors
13.4.1.3 Installing the front panel module

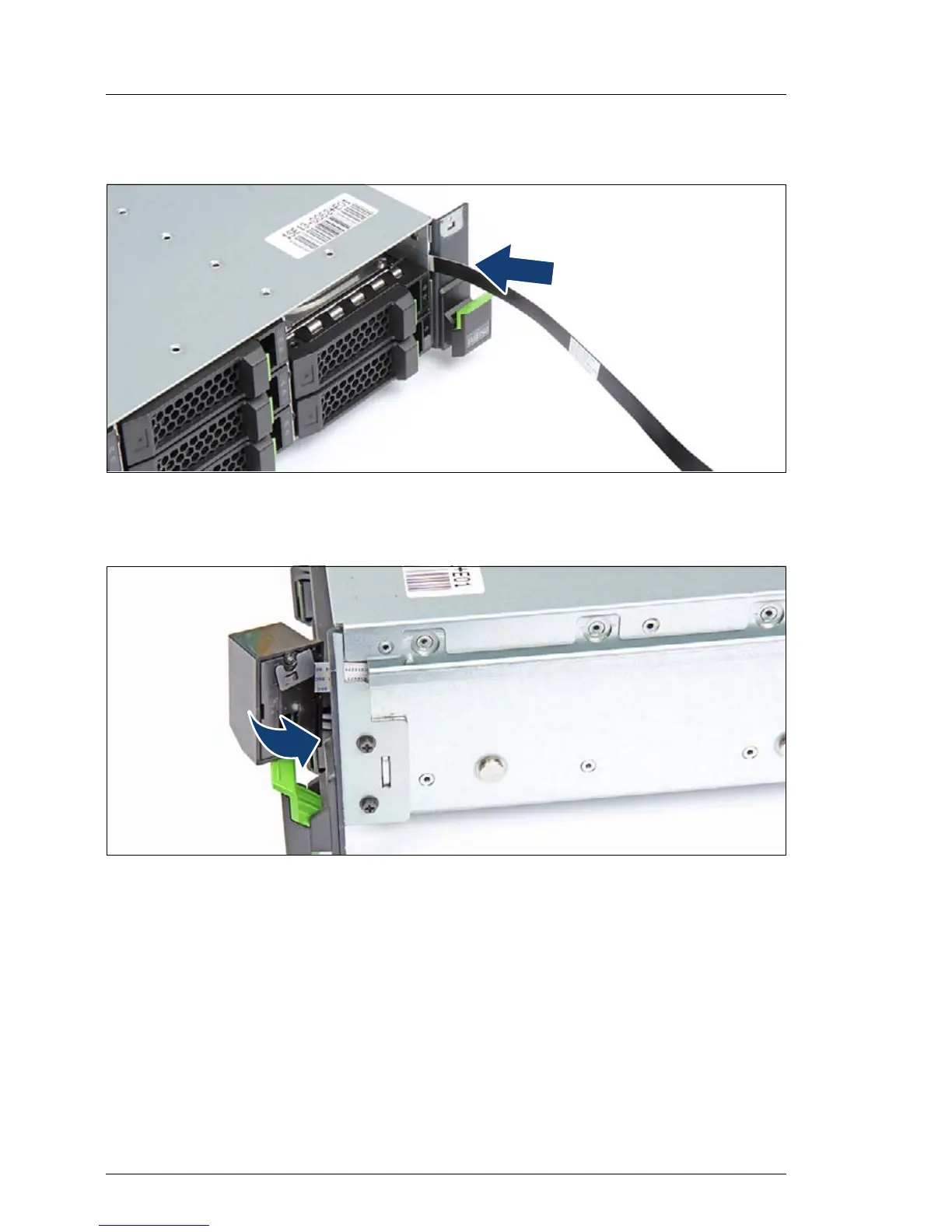

Figure 222: Connecting the front panel cable to the front panel module
Ê Thread in the cable as shown.
Figure 223: Installing the front panel to the ear
Ê Insert the front panel on the ear.
