RX2520 M1 Upgrade and Maintenance Manual 133
Hard disk drives / solid state drives

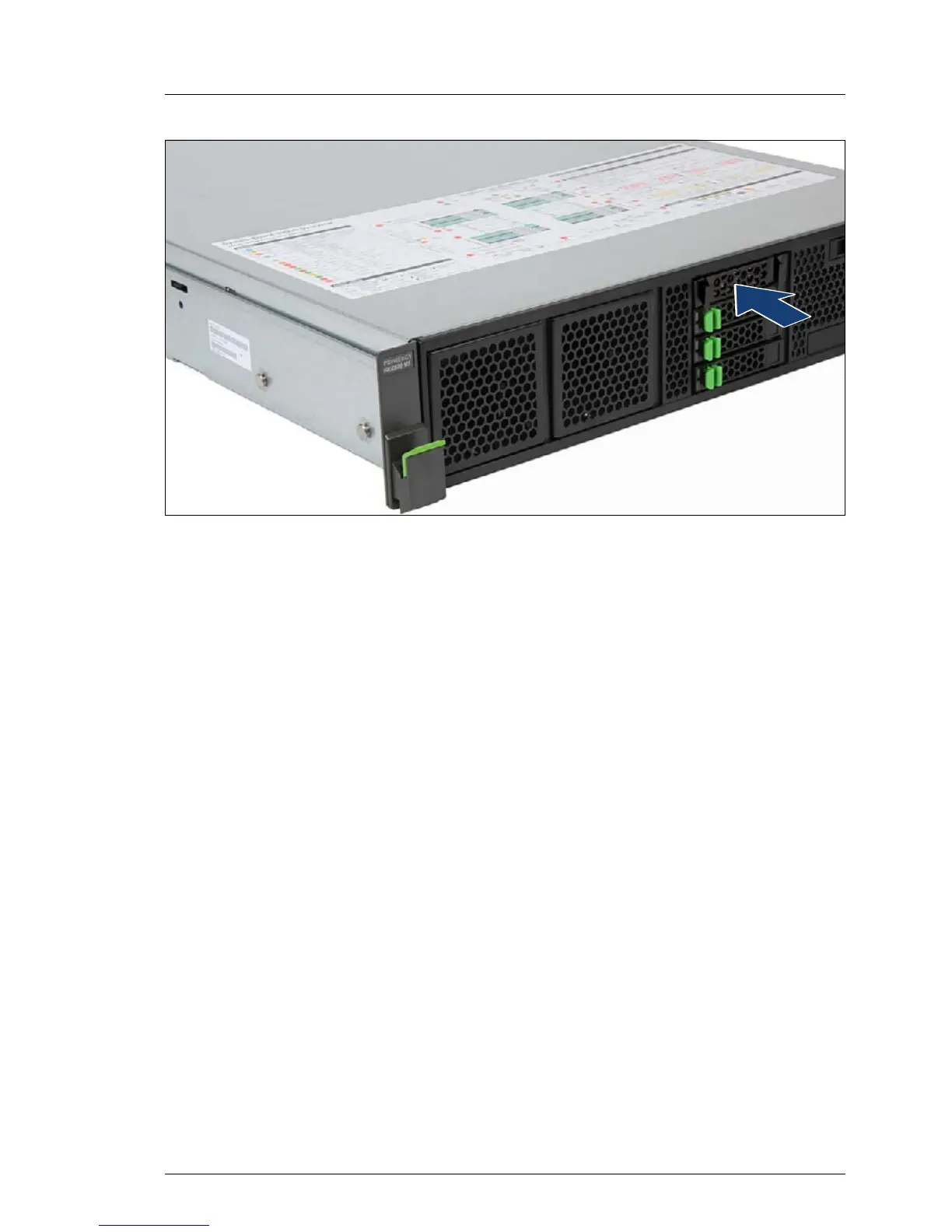

Figure 40: Installing a 2.5-inch dummy module
Ê Slide the dummy module into the drive bay until it locks in place.
7.2.3.4 Concluding steps
Ê "Performing a RAID array rebuild" on page 94
7.3 3.5-inch HDD / SSD configurations
7.3.1 Mounting order for 3.5-inch HDDs
Maximum configuration: 12x 2.5-inch HDDs
Basic information
– If only one HDD module is installed, the HDD module will be installed in
position 1. Empty bays must be equipped with a dummy module.
