Expansion cards and backup units
9.5.2.4 Connecting the FBU cable to the FBU

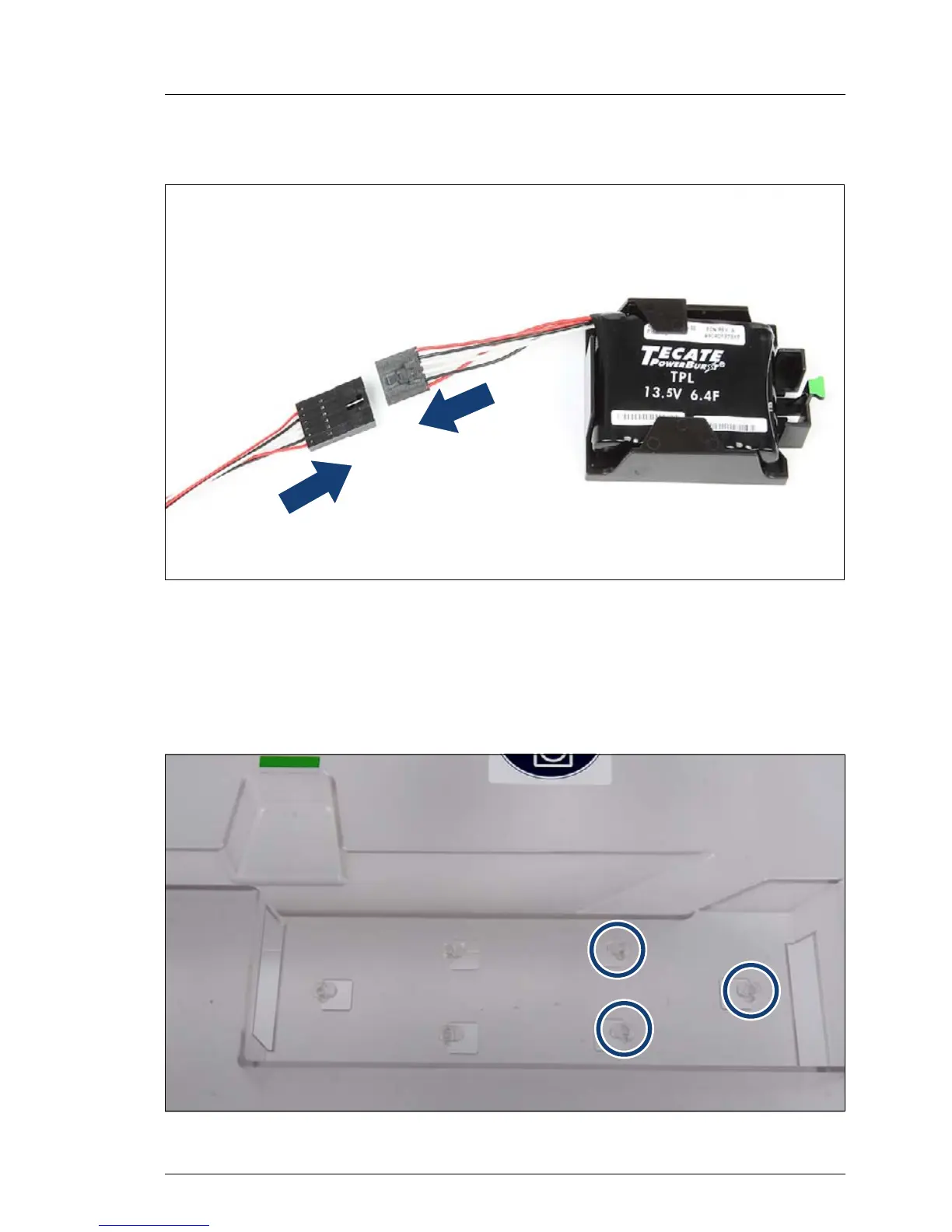

Figure 98: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU module to the FBU adapter cable as
shown.
9.5.2.5 Installing the FBU holder onto the air duct
Figure 99: Installing the FBU holder (A)
