Fujitsu PRIMERGY RX2520 M1 - Installing an ODD

RX2520 M1 Upgrade and Maintenance Manual 275
Accessible drives

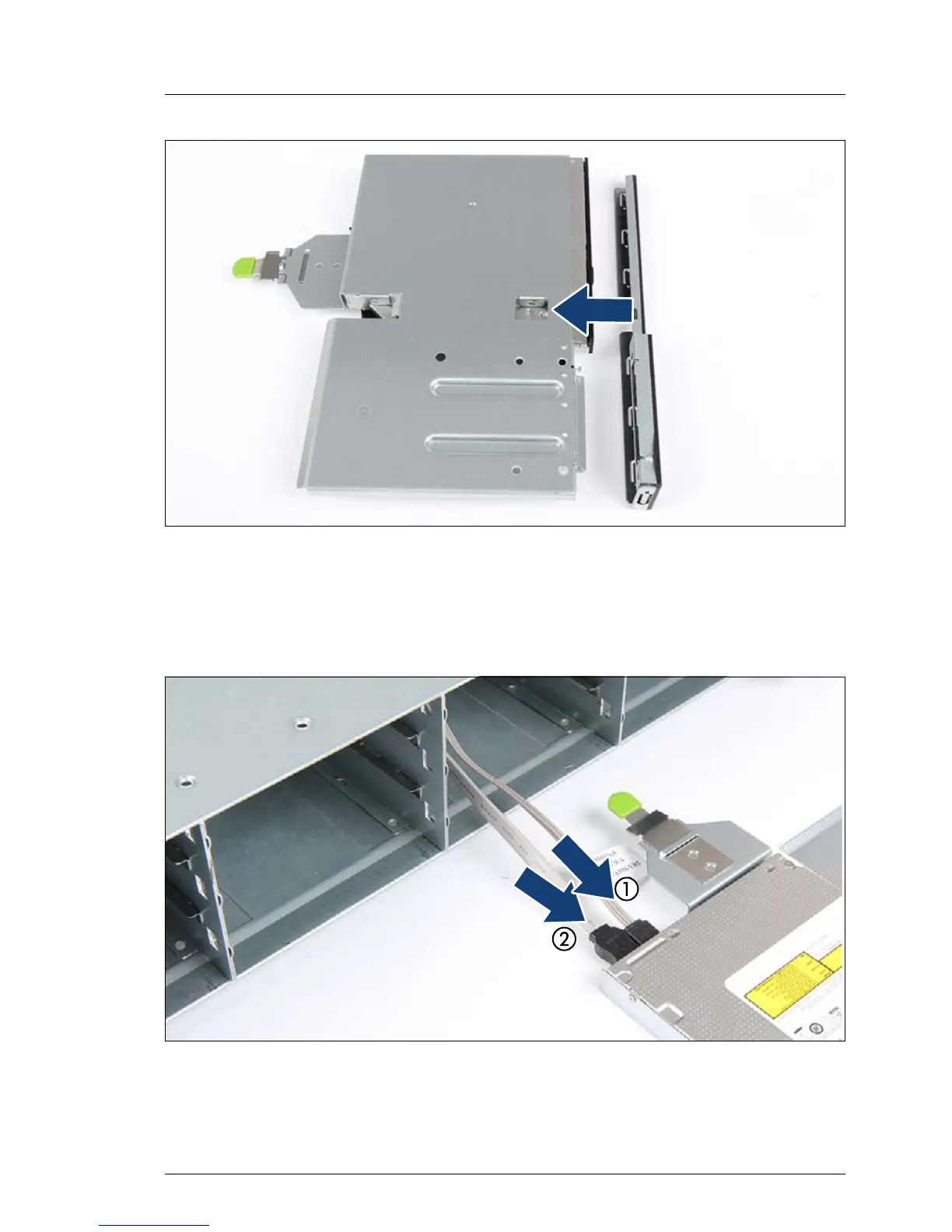

Figure 165: Installing the ODD carrier front
Ê Install the ODD carrier front.
12.6.1.4 Installing an ODD
Figure 166: Installing the ODD
Ê Run the SATA and power cables through the ODD bay opening as shown.
