64 Upgrade and Maintenance Manual RX2520 M1
Basic hardware procedures
4.5.3.2 Sliding the server into the rack

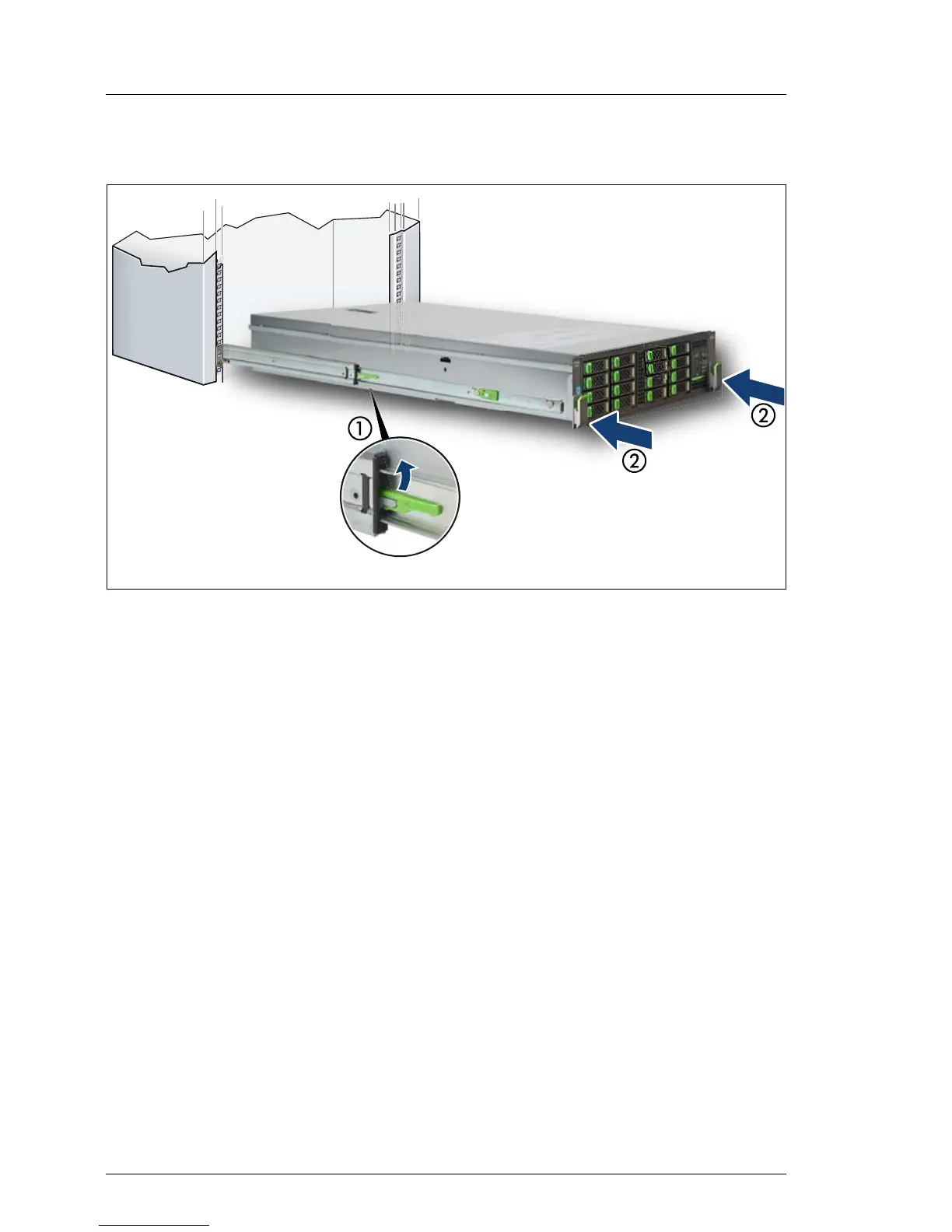

Figure 11: Sliding the server into the rack
Ê Pull up on the locking latch on both telescopic rails (1).
Ê Slide the server inside the rack as far as it will go (2) until the quick release
levers on the rack mounting frame lock into place.
Ê Reconnect all cables except the power cord to the server rear.
I If you are not using a cable mounting arm (CMA kit), ensure that the
rear cables are long enough not to be strained or damaged when
extending the server out of the rack.
Use cable ties to prevent loose cables from blocking the air flow.
For information on connecting and securing the power cord, refer to section
"Connecting the server to the power source" on page 64.
4.6 Connecting the server to the power source
The PRIMERGY RX2520 M1 server is equipped with up to two standard power
supplies unit that automatically adjusts to any mains voltage in the range of
100 VAC to 240 VAC or up to two DC hot-plug power supply unit that adjusts
automatically to any power voltage in the range from -40.5 V to -57 V.

Fujitsu PRIMERGY RX2520 M1 Specifications

General

Bus type	QPI
Stepping	C2
FSB Parity	No
Scalability	2S
Processor code	SR0LM
Processor cache	15 MB
Processor cores	6
Processor model	E5-2430
System bus rate	7.2 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor threads	12
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	2.2 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor boost frequency	2.7 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX
Thermal Design Power (TDP)	95 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066, 1333 MHz
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	375 GB
Intelligent Platform Management Interface (IPMI) support	Yes
HDD size	- \
RAID levels	0, 1
HDD interface	-
Optical drive type	DVD-RW
Supported HDD sizes	2.5, 3.5 \
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Supported storage drive interfaces	SAS, Serial ATA III
Internal memory	8 GB
Memory clock speed	1600 MHz
Maximum internal memory	192 GB
LAN controller	Intel I210
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	7
PCI Express slots version	3.0
Operating system installed	Unix
Compatible operating systems	Hyper-V Server R2 2012\\r Windows Server 2012 R2 Datacenter\\r Windows Server 2012 R2 Standard\\r Windows Server 2012 R2 Essentials\\r Windows Storage Server 2012 R2 Standard\\r Hyper-V Server 2012\\r Windows Server 2012 Datacenter\\r Windows Server 2012 Standard\\r Windows Storage Server 2012 Standard\\r Hyper-V Server 2008 R2\\r Windows Server 2008 R2 Datacenter\\r Windows Server 2008 R2 Enterprise\\r Windows Server 2008 R2 Standard\\r Windows Server 2008 Datacenter\\r Windows Server 2008 Enterprise\\r Windows Server 2008 Standard\\r VMware vSphere 5.5 Embedded\\r VMware vSphere 5.5\\r VMware vSphere 5.0 Embedded\\r VMware vSphere 5.0\\r SUSE Linux Enterprise Server 12\\r SUSE Linux Enterprise Server 11\\r Red Hat Enterprise Linux 6\\r Red Hat Enterprise Linux 5\\r Red Hat Enterprise Linux 5 with XEN\\r Citrix XenServer
Processor ARK ID	64616
Intel® Turbo Boost Technology	1.0
Intel Identity Protection Technology version	0.00
Chassis type	Rack (2U)
Power consumption (typical)	450 W
Power supply input frequency	47 - 63 Hz
Certification	RoHS, WEEE, CB
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770 mm
Width	482.6 mm
Height	86.9 mm
