RX2520 M1
Upgrade and Maintenance Manual 315
Front panel and external connectors

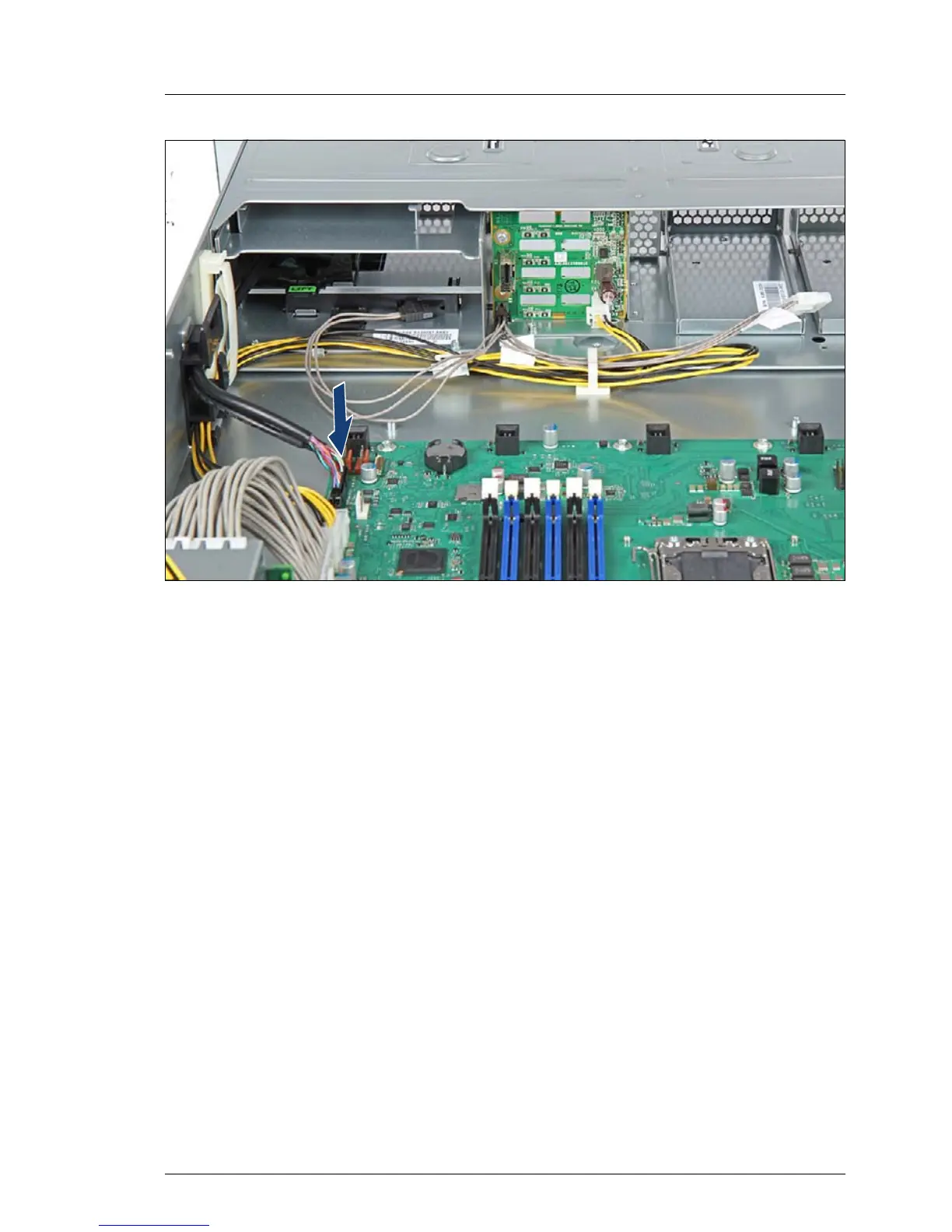

Figure 208: Connecting front panel cables
Ê Connect the front panel cable to the system board.
Ê Run the front panel cable through the cable clamps as shown.
Ê If applicable, connect the front VGA cable to the front VGA connector of the
system board as described in section "Installing the front VGA connector" on
page 316.
13.1.1.4 Concluding steps
Ê "Installing the fan box" on page 171
Ê "Reassembling" on page 59
Ê "Connecting the server to the power source" on page 64
Ê "Switching on the server" on page 66
Ê "Verifying system information backup / restore" on page 77
Ê Store your server’s system information on the Chassis ID EPROM
integrated into the front panel board. For further information on how to obtain
and use the ChassisId_Prom Tool, refer to section "Using the Chassis ID
Prom Tool" on page 97.
