RX2520 M1 Upgrade and Maintenance Manual 317
Front panel and external connectors
13.2.1.3 Preparing the front panel module

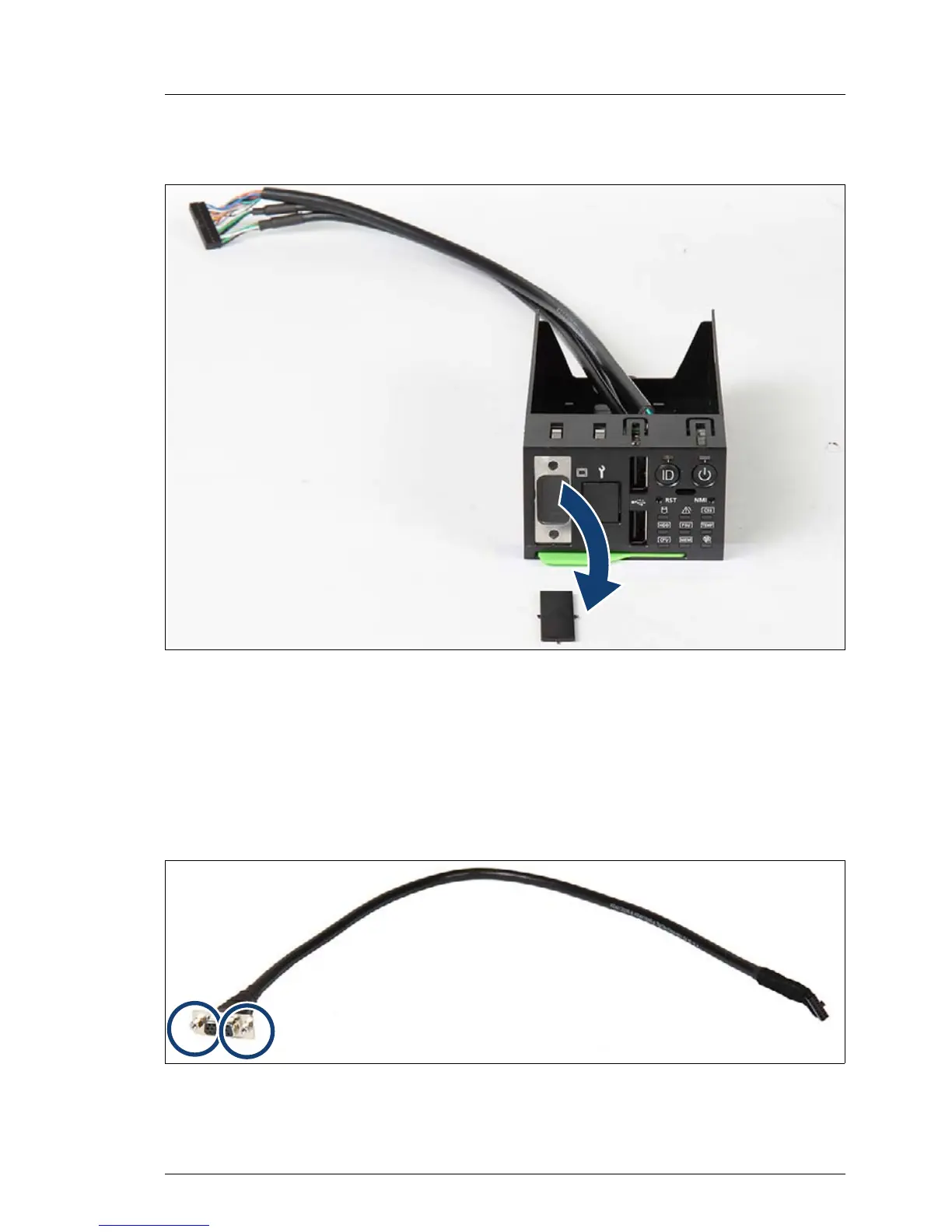

Figure 209: Breaking out the front VGA cover plate
Ê Break out the VGA cover plate on the front panel cover.
I Please note that once removed, the VGA cover plate cannot be
refitted.
13.2.1.4 Installing the front VGA connector
Figure 210: Front VAG cable
Ê Remove the two hexagon bolts from the connector.
