15.3.2.11 Configuration 4 to configuration 8

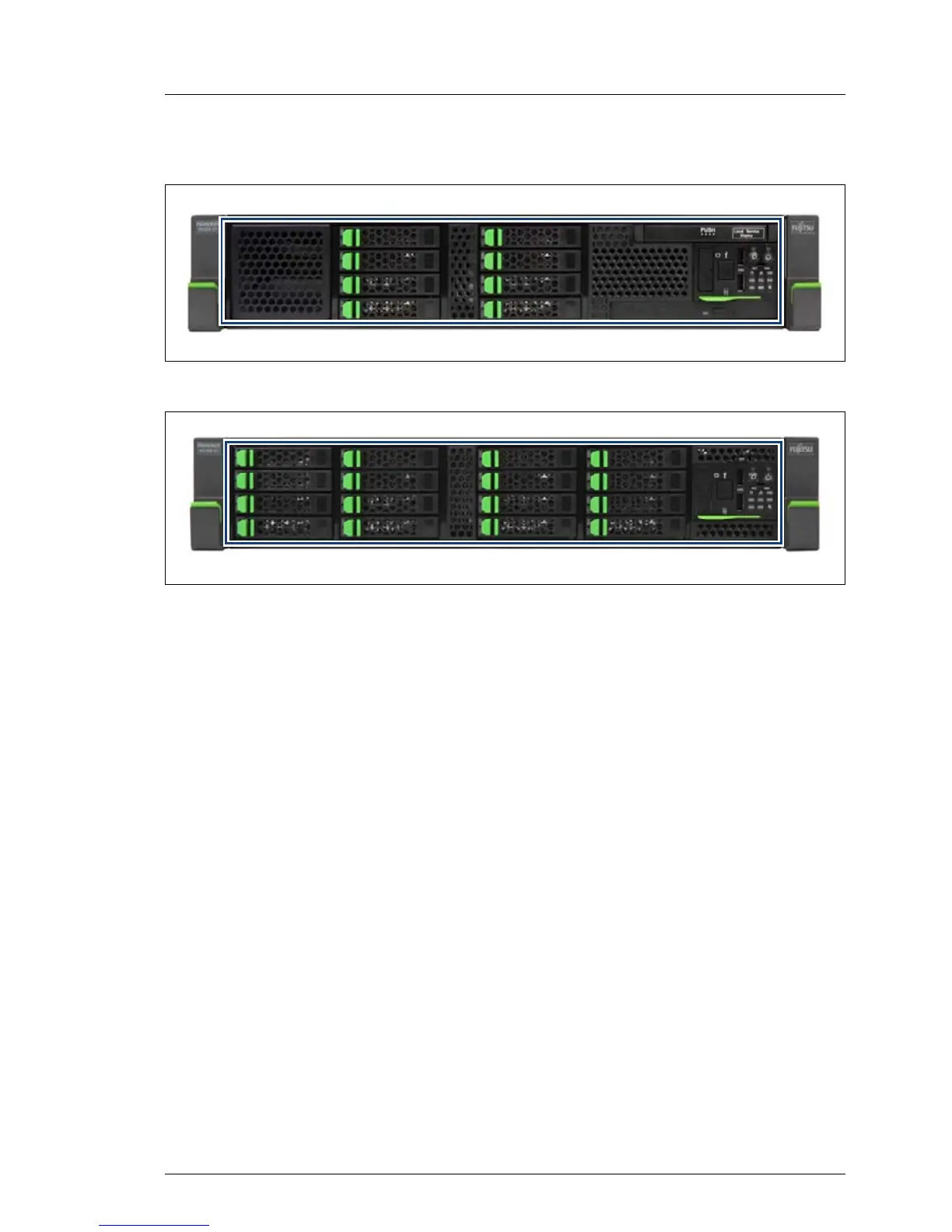

Figure 269: 8x 2.5-inch HDD version
Figure 270: 16x2.5-inch HDD version
15.3.2.12 Steps
Ê "Disabling or suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 51
Ê "Disconnecting power cords" on page 52
Ê Remove all external cables.
Ê "Getting access to the component" on page 53
Ê "Removing the fan box" on page 168
Ê Remove the HDD modules and HDD dummy modules, see "Removing a
3.5-inch HDD module" on page 141 and "Removing a 2.5-inch dummy
module" on page 128.
Ê Remove the 4x2.5-inch HDD backplanes from cage 2 and 3, see "Removing
the 4x 2.5-inch SAS HDD backplane" on page 143.
Ê Remove the multicage, see "Removing the front panel cage" on page 323.
Ê "Installing the 4x 2.5-inch HDD SAS backplane" on page 144
Ê Install the HDD cage 4, see "Installing a HDD cage" on page 159.
