Fujitsu PRIMERGY RX2520 M1 - Installing a Hot-Plug Power Supply Unit; Concluding Steps

RX2520 M1 Upgrade and Maintenance Manual 105
Power supply units
6.2.3 Installing a hot-plug power supply unit

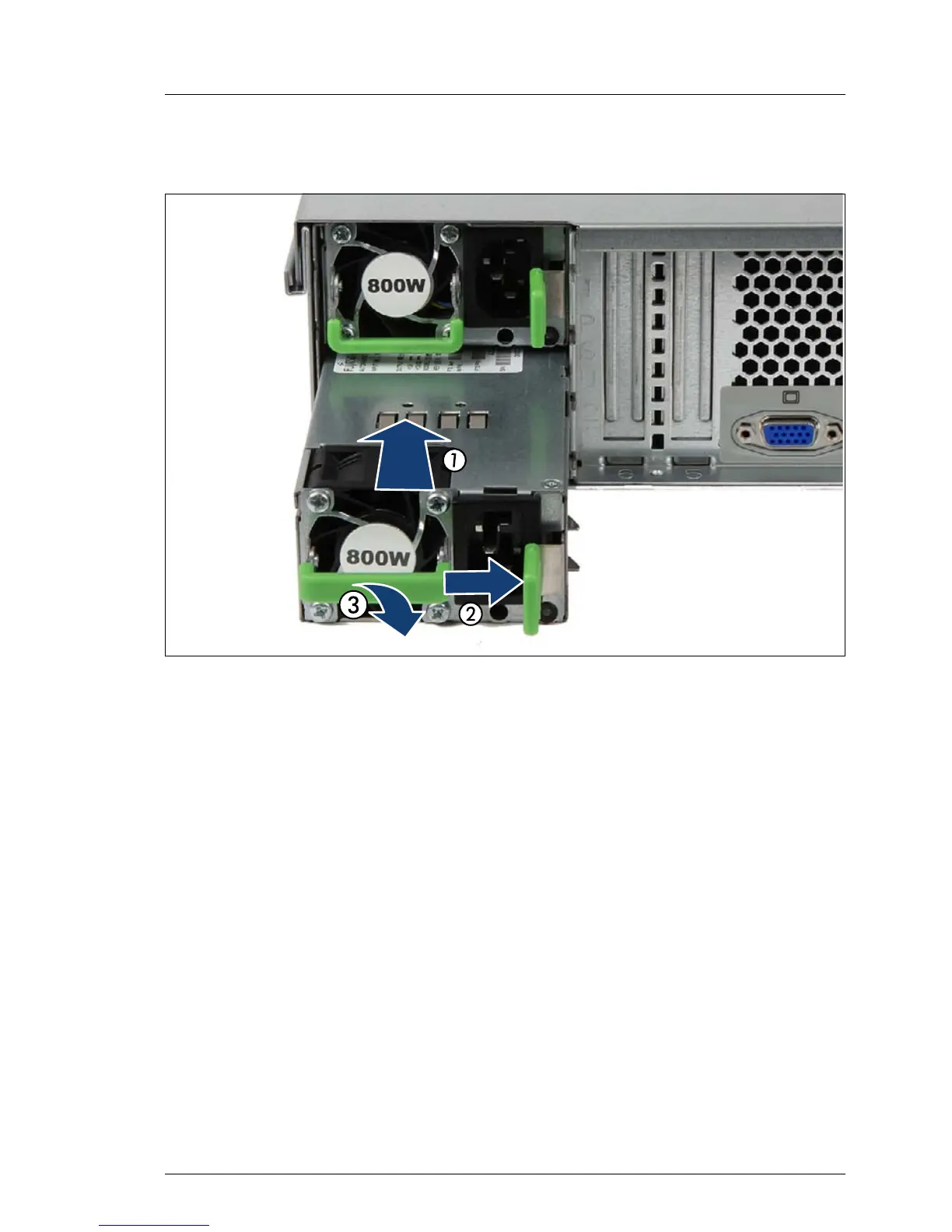

Figure 17: Installing the hot-plug power supply unit
Ê Push the power supply unit into its bay (1) as far as it will go until the release
latch snaps in place (2).
Ê Fold down the handle on the power supply unit(3).
V CAUTION!
Ensure that the power supply unit properly engages in its bay and is
locked in position in order to prevent it from sliding out of the chassis
during transportation.
6.2.4 Concluding steps
Ê "Connecting the server to the power source" on page 64
