Fujitsu PRIMERGY RX2520 M1 - Re-Installing the Front Panel Cage

RX2520 M1 Upgrade and Maintenance Manual 325
Front panel and external connectors
Panelhousing

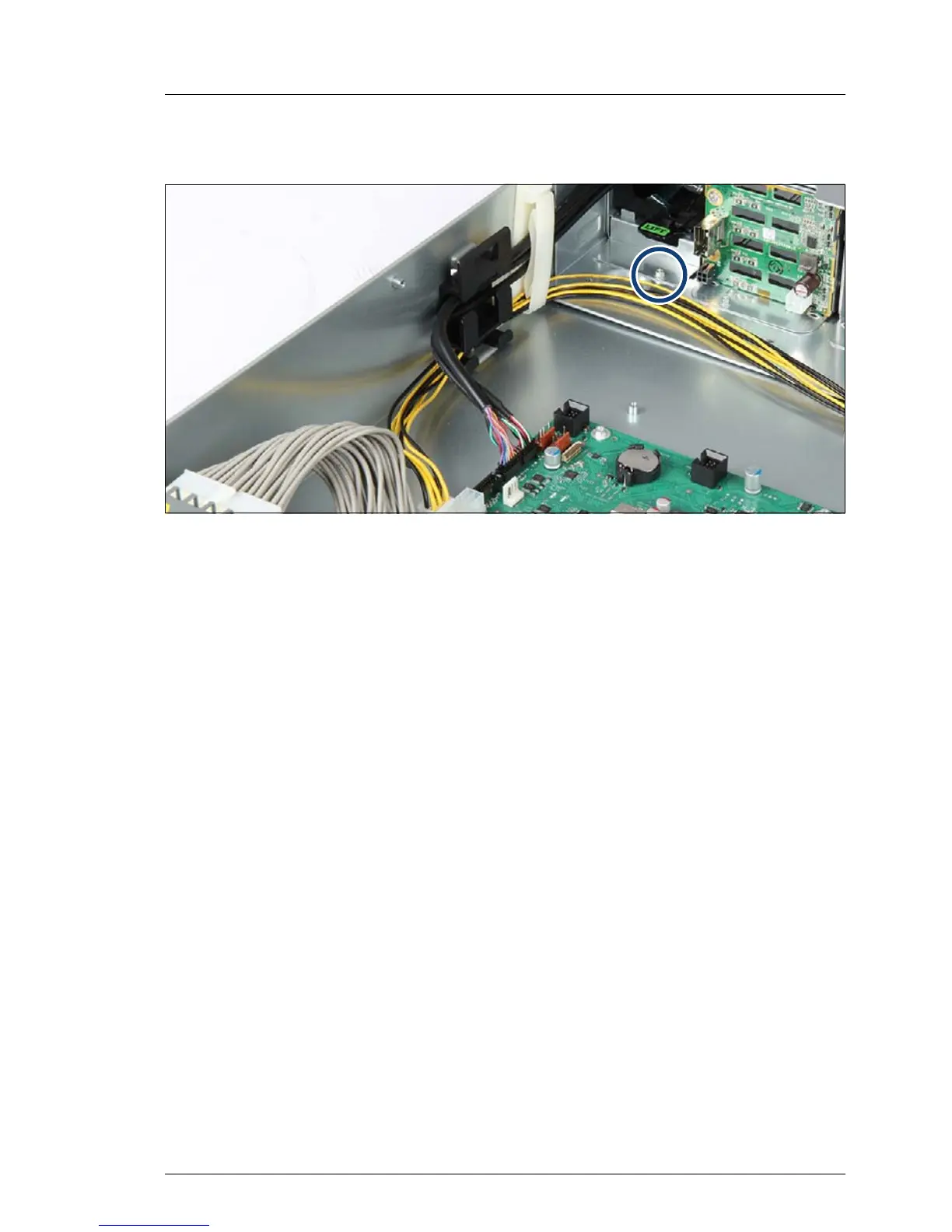

Figure 216: Removing the panelhousing
Ê Remove the screw.
Ê Push the panelhousing out of the chassis frontward.
Ê "Removing the front panel module" on page 313
13.3.1.3 Re-installing the front panel cage
Multicage
Ê Install the removed modules.
– "Installing the front panel module" on page 313
– "Installing an ODD" on page 266
– "Installing a LSD module" on page 257
