326 Upgrade and Maintenance Manual RX2520 M1
Front panel and external connectors

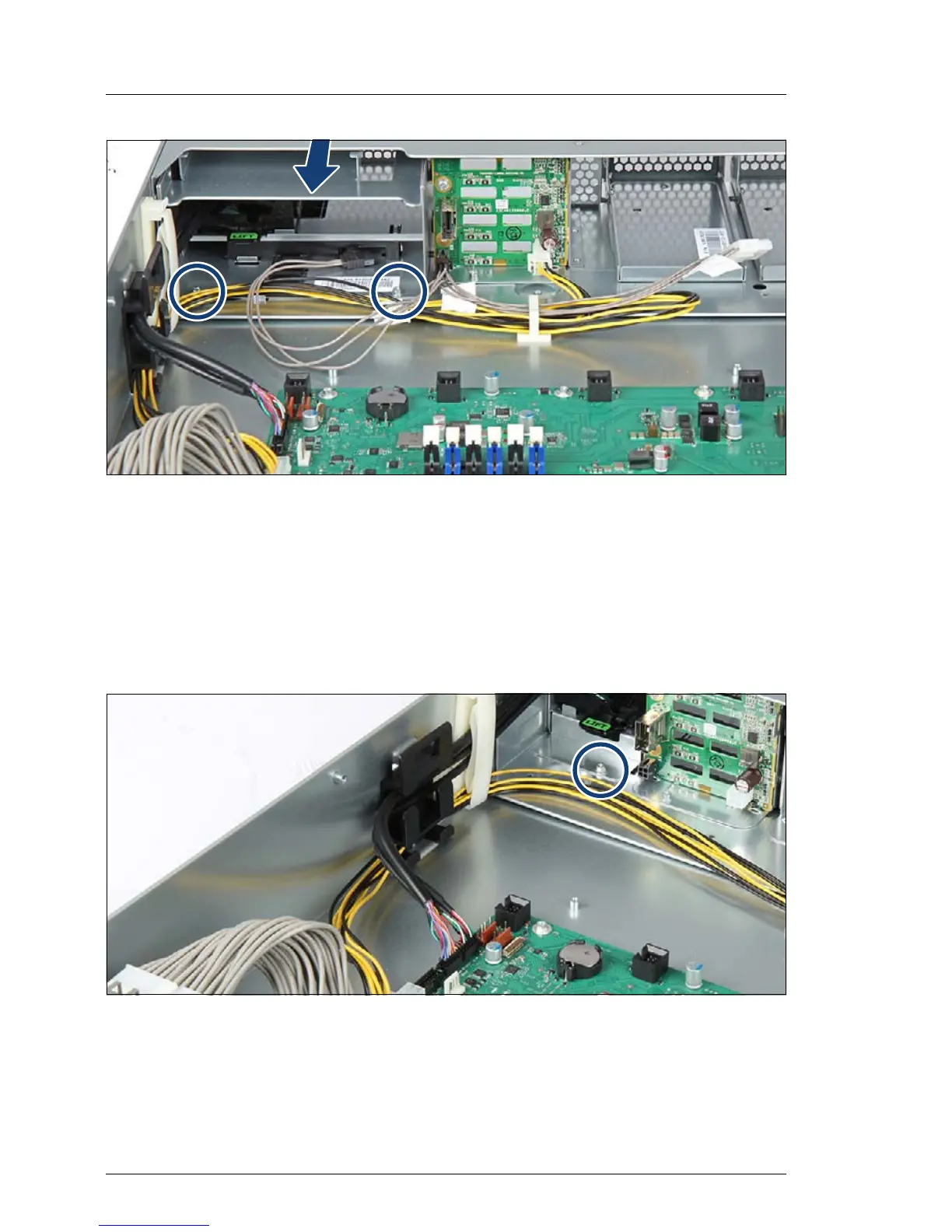

Figure 217: Inserting the front panel cage
Ê Insert the front panel cage.
Ê Fasten the front panel cage with two screws
Panelhousing
Ê "Installing the front panel module" on page 313
Figure 218: Inserting the front panel cage
Ê Insert the front panel cage.
Ê Fasten the front panel cage with the screw.
