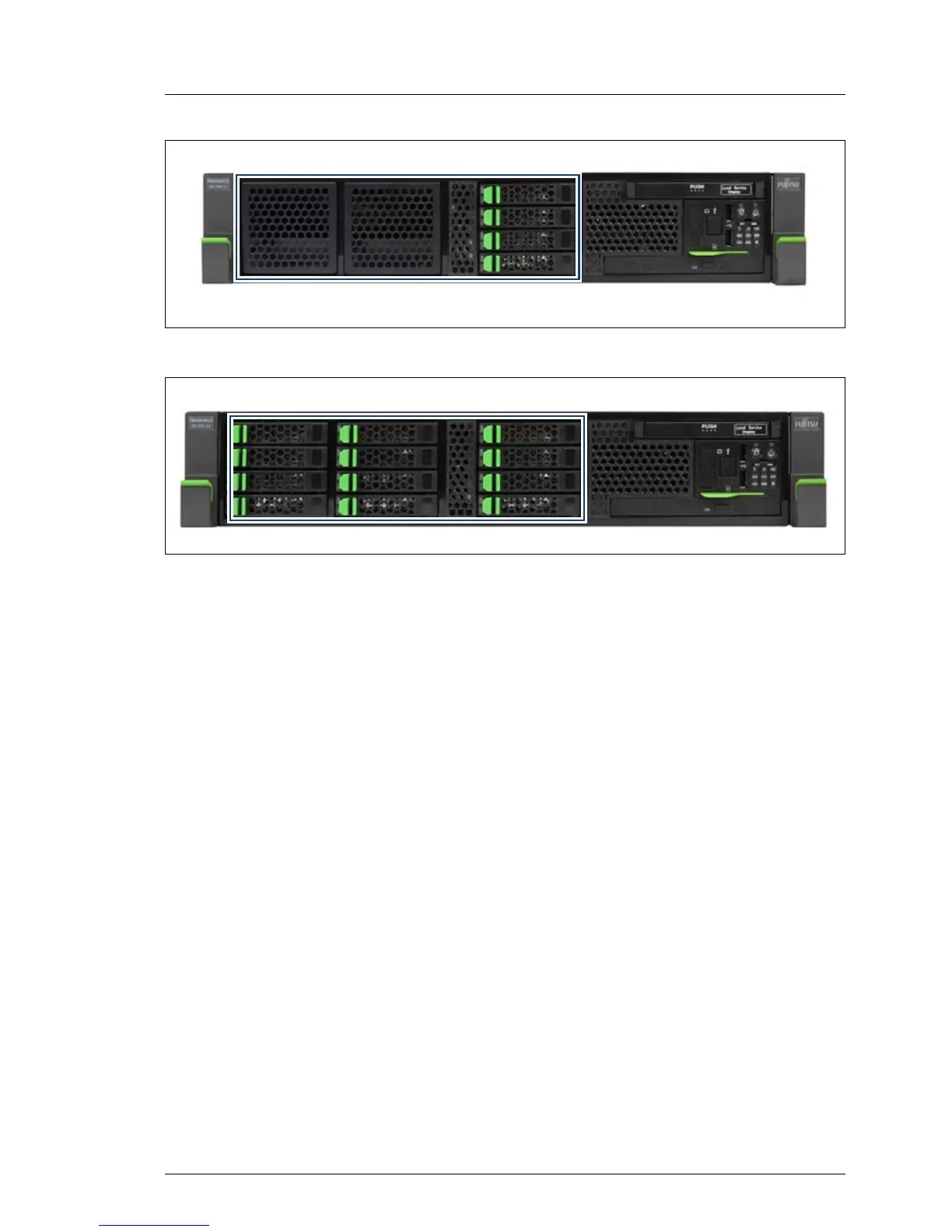

Figure 261: 4x 2.5-inch version
Figure 262: 12x 2.5-inch version
15.3.2.4 Steps
Ê "Disabling or suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 51
Ê "Disconnecting power cords" on page 52
Ê Remove all external cables.
Ê "Getting access to the component" on page 53
Ê "Removing the fan box" on page 168
Ê "Removing the front cover" on page 376
Ê Remove the HDD cage 1 and 2, see "Removing a HDD cage" on page 158.
Ê "Removing the 4x 2.5-inch SAS HDD backplane" on page 143
Ê Installing the HDD cage 1 and 2, see "Installing a HDD cage" on page 159.
Ê "Installing the 12x 2.5-inch HDD SAS backplane" on page 148
Ê "Installing a 2.5-inch HDD / SSD module" on page 129 and "Installing a 2.5-
inch dummy module" on page 132
Ê "Installing the front cover 2.5-inch version" on page 377
