7.3.2 Installing 3.5-inch HDD modules
7.3.2.1 Preliminary steps
Ê Locate the correct drive bay as described in section "3.5-inch HDD / SSD
configurations" on page 133.
7.3.2.2 Removing a 3.5-inch dummy module

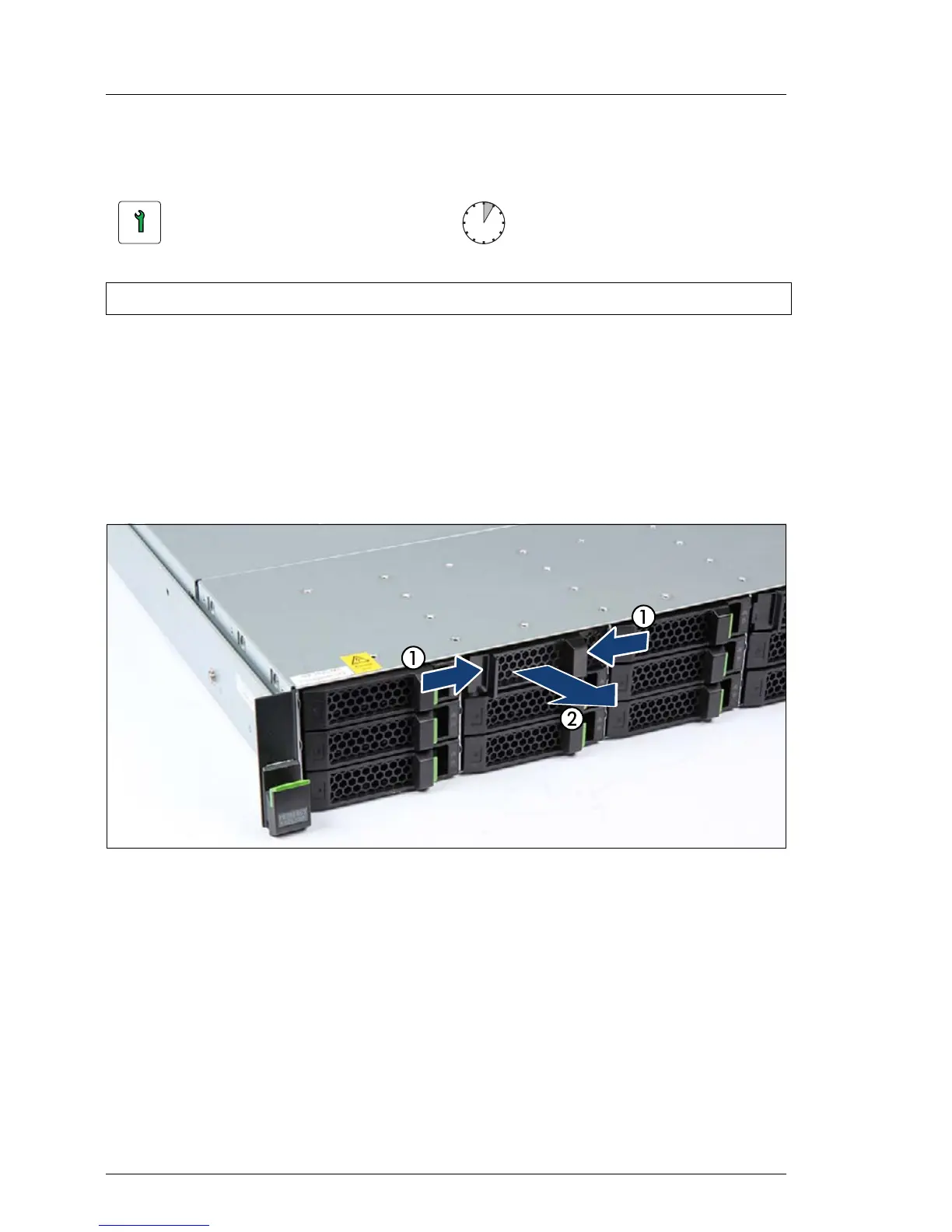

Figure 43: Removing a 3.5-inch dummy module
I Dummy modules have been installed into unused HDD bays. Before
installing an additional HDD, the dummy module needs to be removed
from the desired drive bay.
Ê Press in on the locking tabs on both sides of the dummy module to
disengage the locking mechanism (1).
Ê While keeping the locking tabs pressed, pull the dummy module out of its
bay (2).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
