Ê Remove all HDD / SSD modules from the server as described in section
"Removing 2.5-inch HDD / SSD modules" on page 130.
V CAUTION!
Ensure that all hard disk drives are uniquely identified so that you can
reinsert them into their original bays after replacing the HDD
backplane.
Ê "Getting access to the component" on page 53
Ê "Removing the fan box" on page 168
7.4.2.2 Removing the 12x2.5-inch HDD SAS backplane

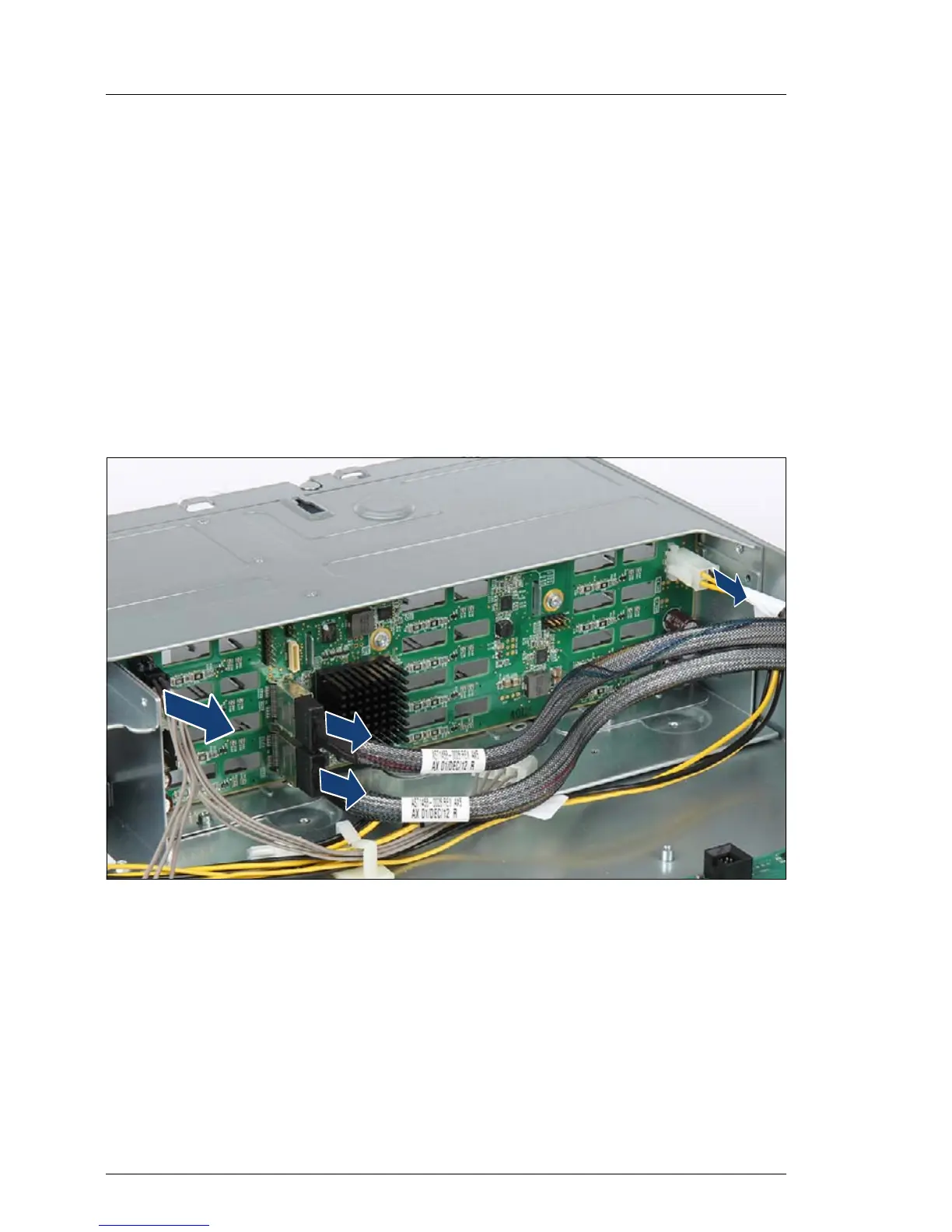

Figure 52: Disconnecting cables from the 12x 2.5-inch HDD SAS backplane
Ê Disconnect all cables from the 12x 2.5-inch HDD SAS backplane:
– SAS cables
– Power cables
