RX2520 M1 Upgrade and Maintenance Manual 147
Hard disk drives / solid state drives

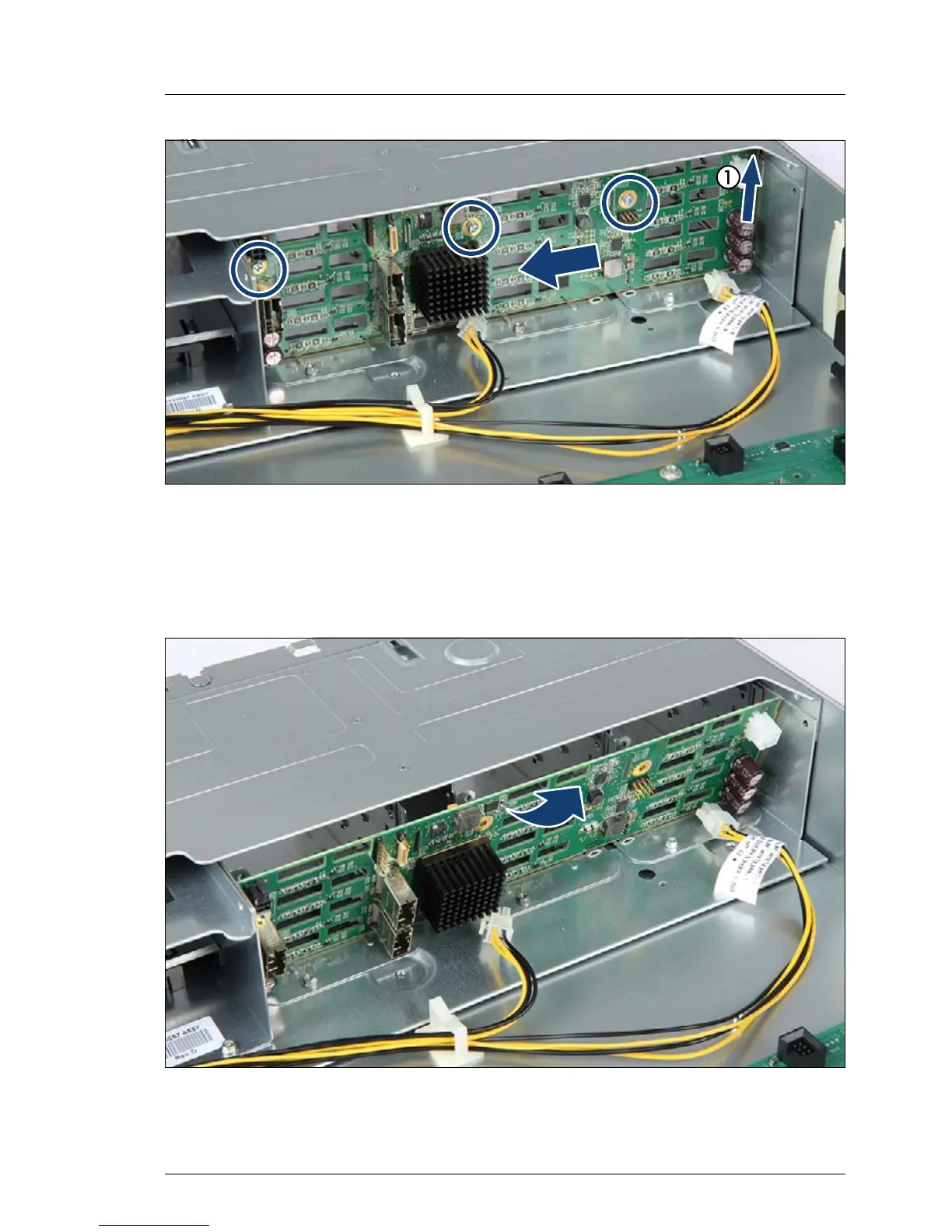

Figure 53: Removing the 2.5-inch HDD SAS backplane (A)
Ê Remove the three screws of the 12x 2.5-inch HDD SAS backplane (see
circles).
Ê Shift the backplane slightly to the left to disengage the nose (1)
Figure 54: Removing the 2.5-inch HDD SAS backplane (B)
Ê Tilt out the 12x 2.5-inch HDD SAS backplane as shown.
