Fujitsu PRIMERGY RX2520 M1 - HDD; SSD Mounting Order for 16 X 2.5-Inch HDD; SSD Configuration; HDD; SSD Naming Scheme 16 X 2.5-Inch HDD; SSD Configuration

126 Upgrade and Maintenance Manual RX2520 M1
Hard disk drives / solid state drives
7.2.1.7 HDD / SSD mounting order for 16x 2.5-inch HDD / SSD
configuration

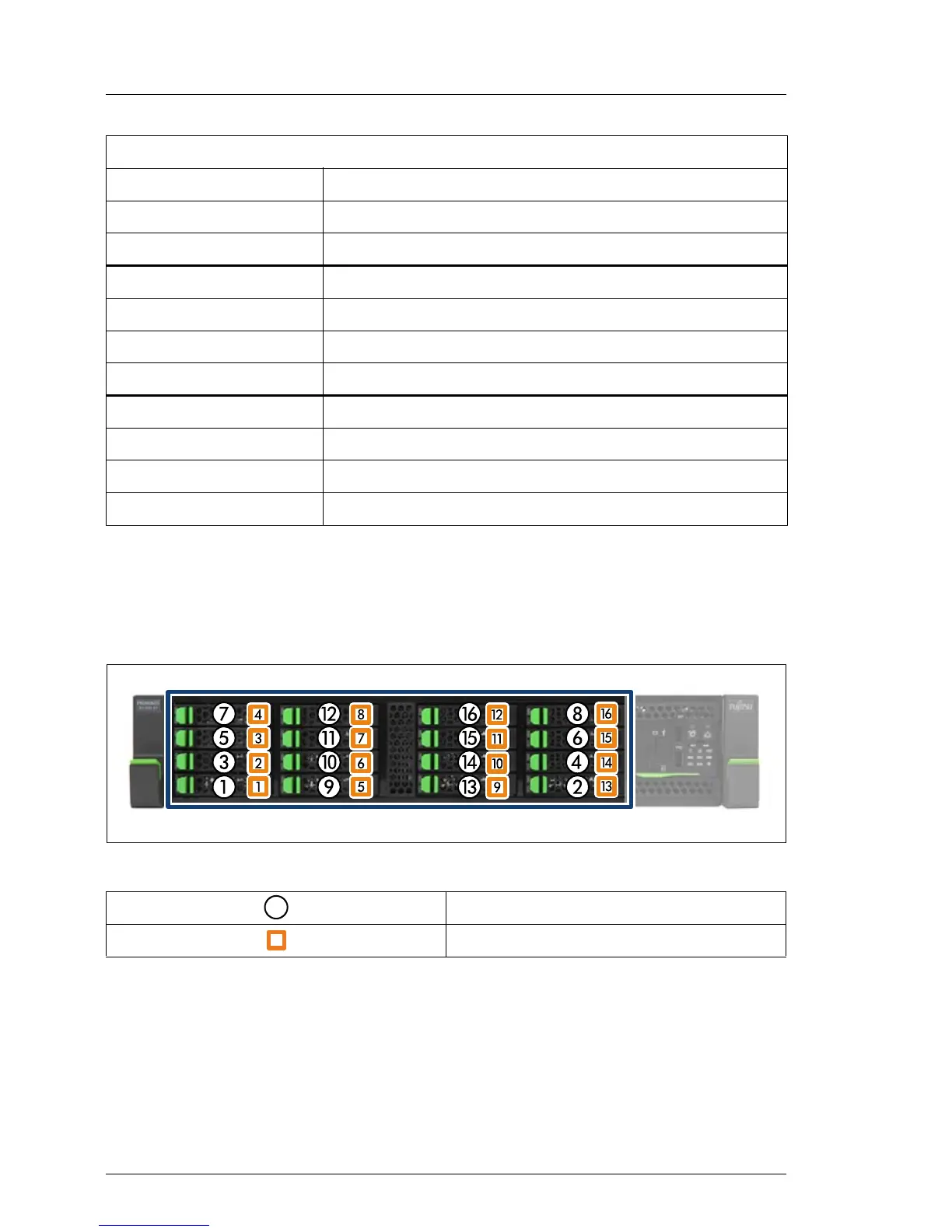

Figure 34: 2.5-inch HDD / SSD mounting order configuration 8
7.2.1.8 HDD / SSD naming scheme 16x 2.5-inch HDD / SSD
configuration
I The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
3 [2]
4 [3]
5 [4]
6 [5]
7 [6]
8 [7]
9 [8]
10 [9]
11 [10]
12 [11]
Mounting order
Bay number
2.5-inch HDDs / SSDs
HDD bay RAID Manager #
Table 6: HDD naming scheme
