RX2520 M1
Upgrade and Maintenance Manual 61
Basic hardware procedures
4.5.2.1 Mounting the housing cover

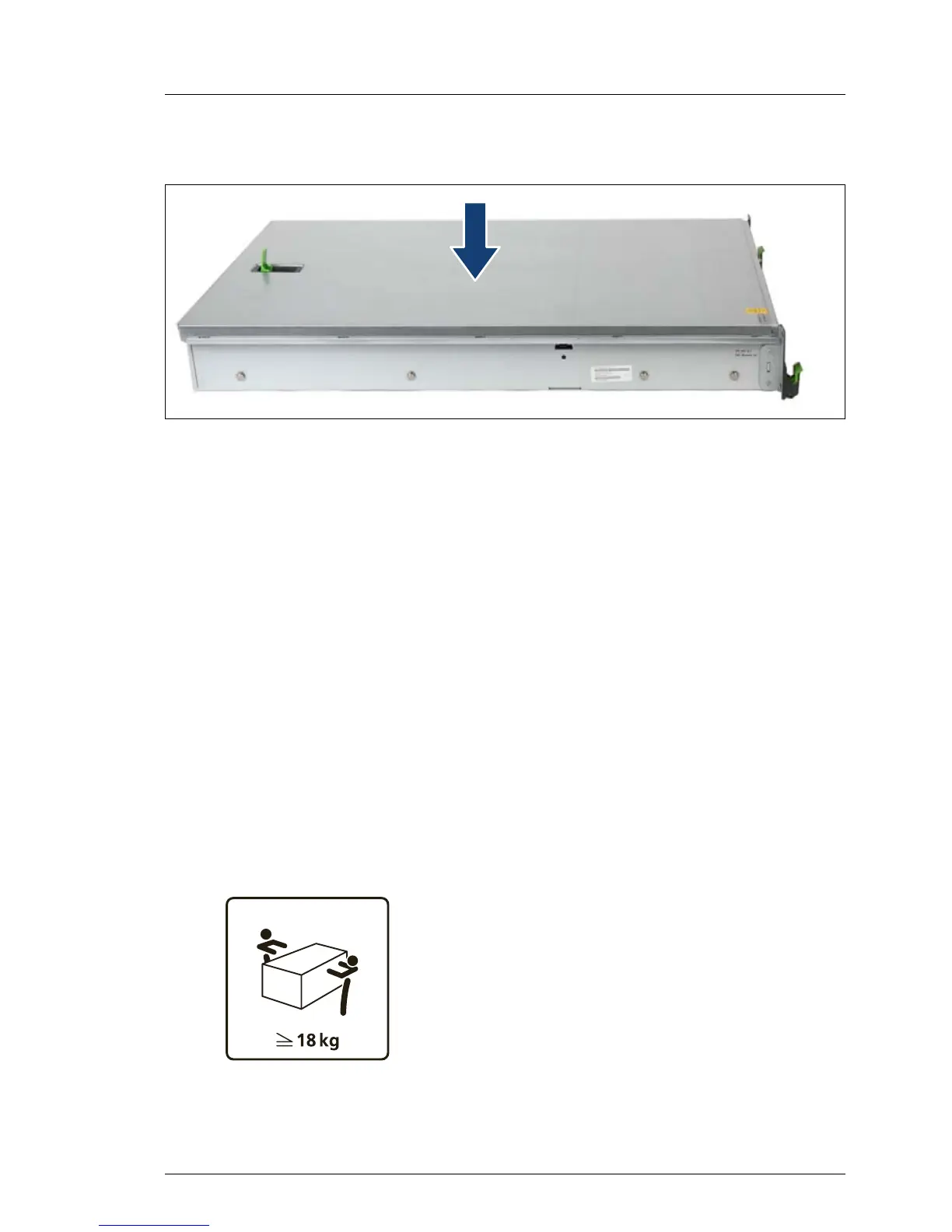

Figure 9: Mounting the housing cover
Ê Open the locking lever on the top cover.
Ê Fit the housing cover on the chassis, aligning it according to the edge guide
marking on the upper server surface.
Ê Lower the housing cover onto the chassis.
Ê Close the locking lever on the housing cover. This will slide the housing
cover shut engaging the locking mechanism.
4.5.3 Mounting the server in the rack
4.5.3.1 Seating the server on the rack rails
V CAUTION!
At least two people are needed to position the server on the rack rails.
(For the Japanese market, please refer to " 安全上のご注意 ".)
For configurations below 32 kg:
At least two people are needed to lift the server
into the rack cabinet.
