V CAUTION!
All data on all HDDs / SSDs in the array will be lost! Be sure to back
up your data before deleting a RAID array.
I For further information, please refer to the "ServerView Suite RAID
Management" user guide and manuals of RAID controller.
7.2.3.2 Removing a 2.5-inch HDD / SSD module

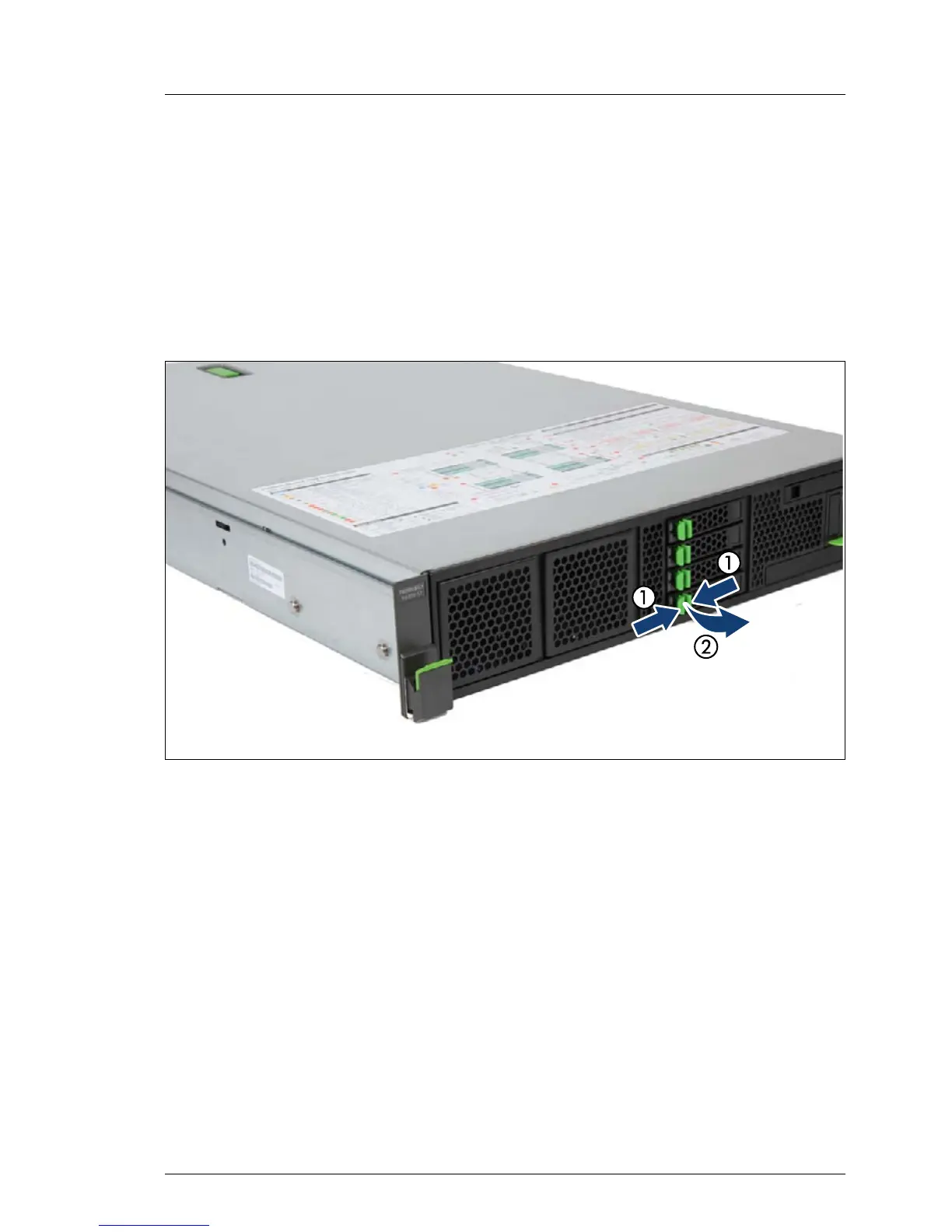

Figure 38: Disconnecting a 2.5-inch HDD / SSD module
Ê Pinch the green locking clips (1) and fully open the locking lever (2).
I Thereby, the HDD / SSD module is pushed out of its drive bay by
about 1 cm and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
I This is not necessary when removing a solid state drive.
