134 Upgrade and Maintenance Manual RX2520 M1
Hard disk drives / solid state drives
7.3.1.1 HDD mounting order for 8x 3.5-inch HDD configuration

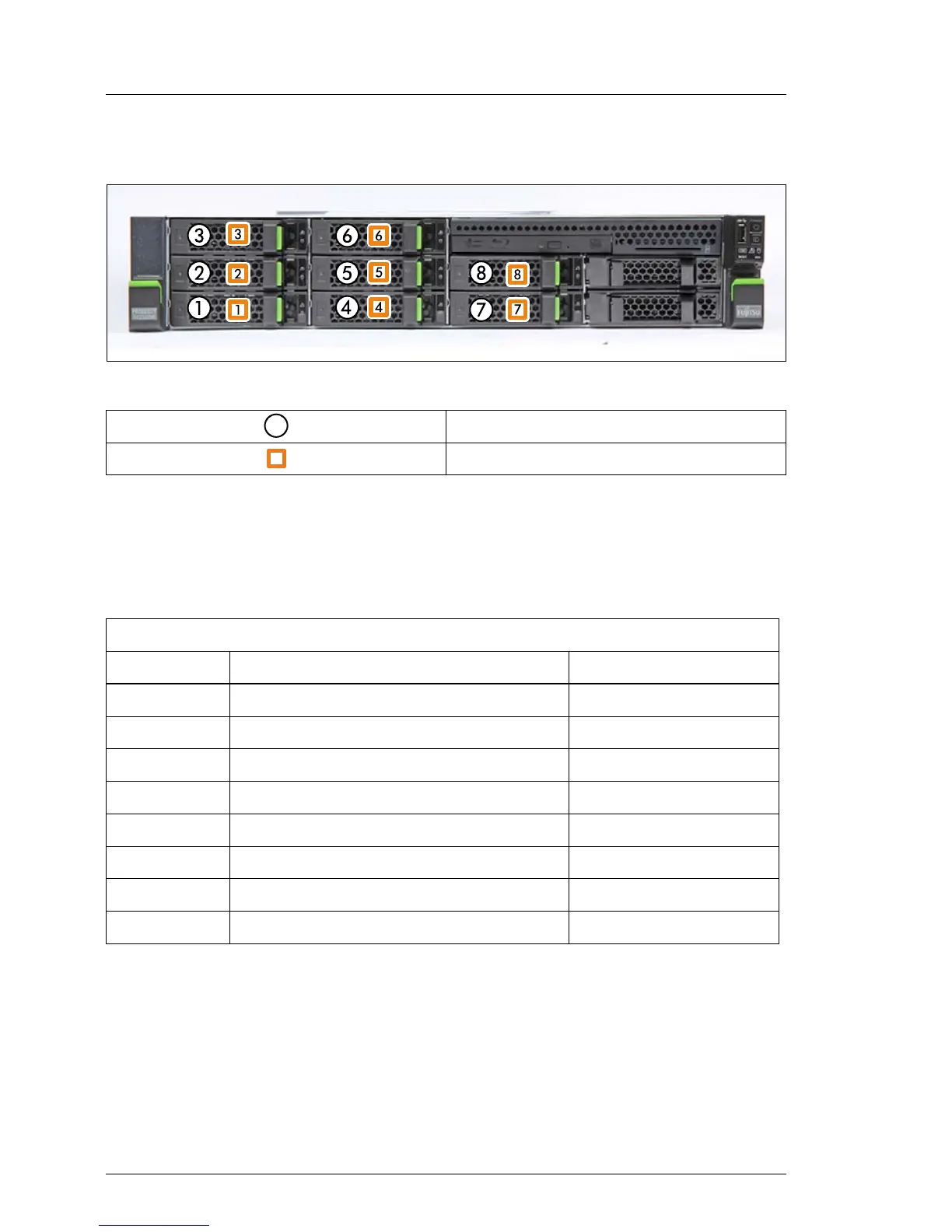

Figure 41: 3.5-inch HDD mounting order configuration 1
7.3.1.2 HDD naming scheme for 8x 3.5-inch HDDconfiguration
I The HDD numbering as listed in the ServerView RAID Manager differs
from the HDD mounting order:
Mounting order
Bay number
3.5-inch HDDs / SSDs
HDD bay RAID Manager # Channel
1 [0] 1
2 [1] 1
3 [2] 1
4 [3] 1
5 [4] 2
6 [5] 2
7 [6] 2
8 [7] 2
Table 8: HDD naming scheme
