Fujitsu PRIMERGY RX2520 M1 - Removing the LSD Module

RX2520 M1 Upgrade and Maintenance Manual 259
Accessible drives
12.3.2 Removing the LSD module

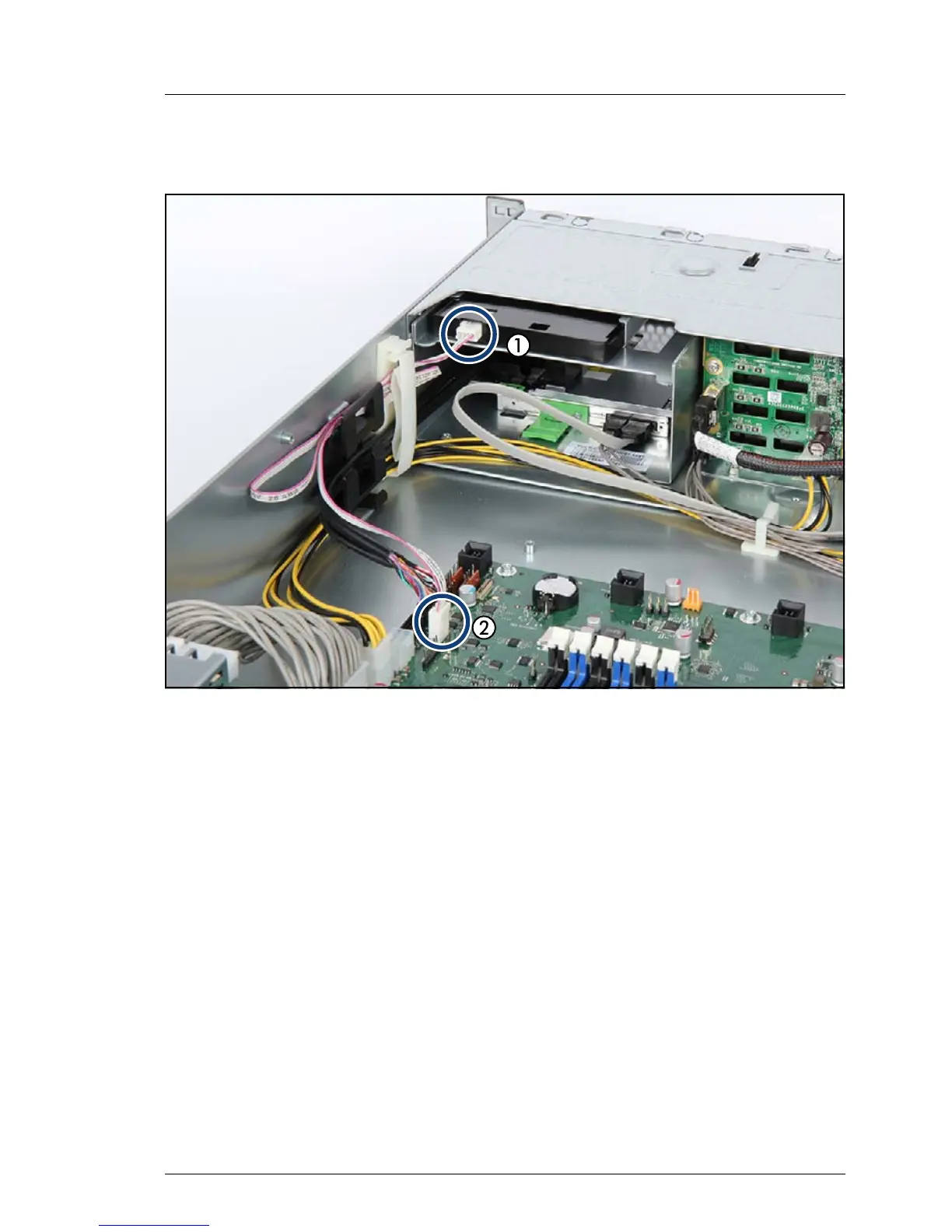

Figure 148: Removing the LSD cable
Ê Remove the LSD cable from the LSD module (1) and the connector on the
system board (2).
