RX2520 M1
Upgrade and Maintenance Manual 143
Hard disk drives / solid state drives
7.4.1.2 Removing the 4x 2.5-inch SAS HDD backplane

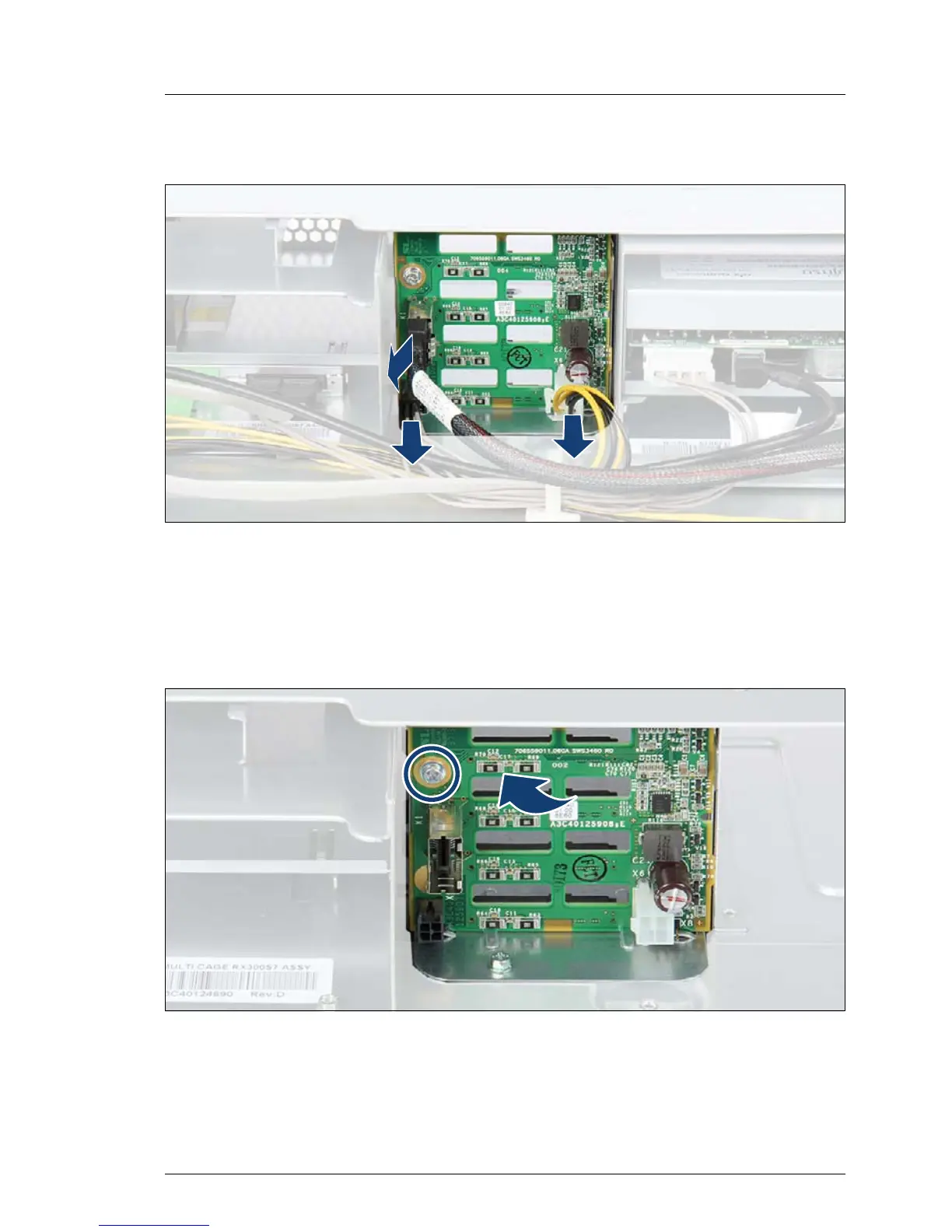

Figure 48: Disconnecting cables from the 4x 2.5-inch HDD SAS backplane
Ê Disconnect all cables from the 4x 2.5-inch HDD SAS backplane:
SAS / SATA cable
Power cables
Figure 49: Removing the 4x 2.5-inch HDD SAS backplane
Ê Remove the screw.
Ê Remove the 4x 2.5-inch HDD SAS backplane.
