Fujitsu PRIMERGY RX2520 M1 - Installing the Air Duct with an FBU; Concluding Steps

RX2520 M1 Upgrade and Maintenance Manual 205
Expansion cards and backup units
The hooks on the air duct will lock in the narrow ends of the keyhole slots on
the FBU holder.
Ê Ensure that the locking handle on the FBU holder properly snaps in place .
9.5.2.6 Installing the air duct with an FBU

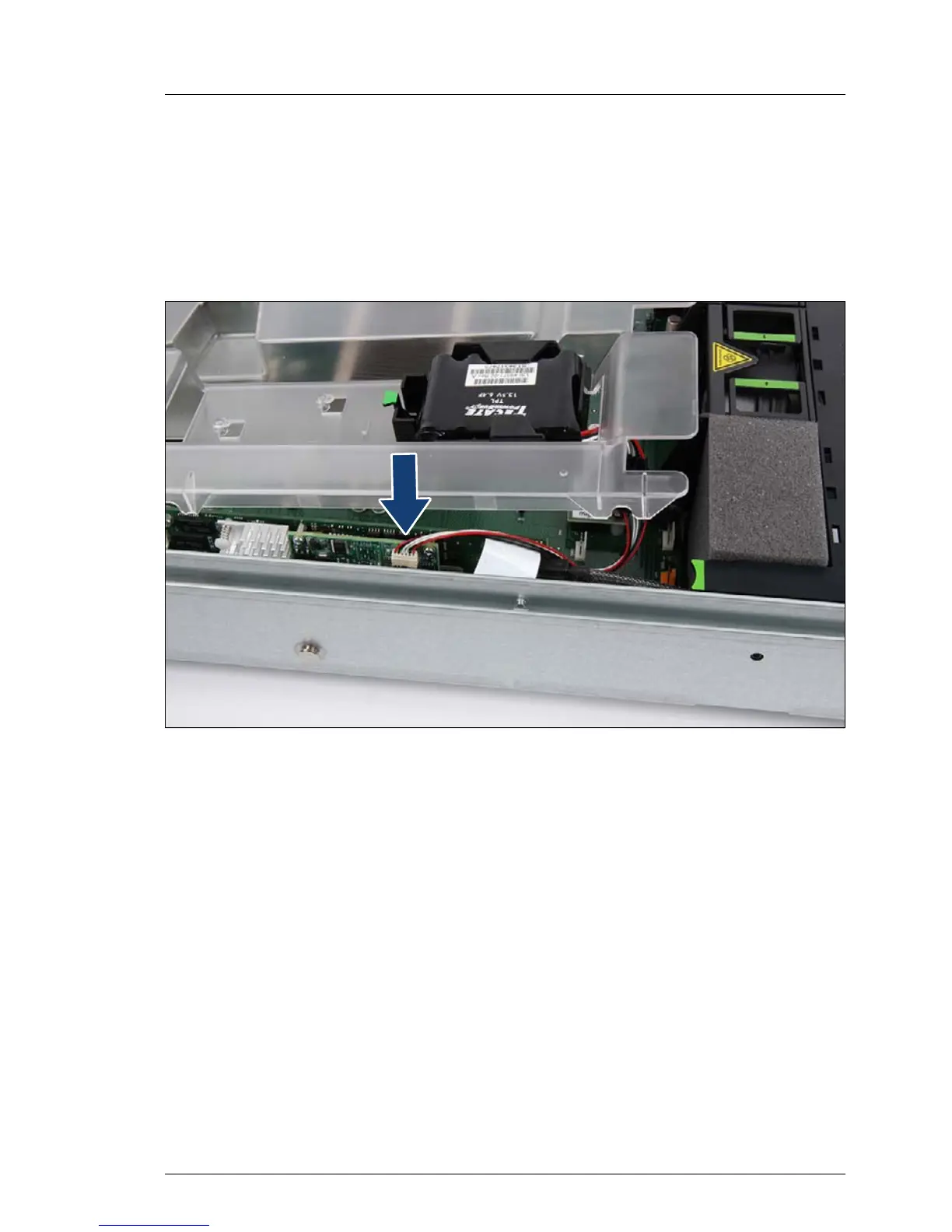

Figure 102: Connecting the FBU to the controller
Ê Insert the air duct.
Ê Connect the FBU cable to the RAID controller.
Ê Route the cable in such a way that the cable is not pinched under the air
duct.
9.5.2.7 Concluding steps
Ê "Reassembling" on page 59
Ê "Connecting the server to the power source" on page 64
Ê "Switching on the server" on page 66
Ê If applicable, "Updating RAID controller firmware" on page 79.
Ê "Enabling SVOM boot watchdog functionality" on page 87
