124 Upgrade and Maintenance Manual RX2520 M1
Hard disk drives / solid state drives
7.2.1.3 HDD / SSD mounting order for 8x 2.5-inch HDD / SSD
configurations

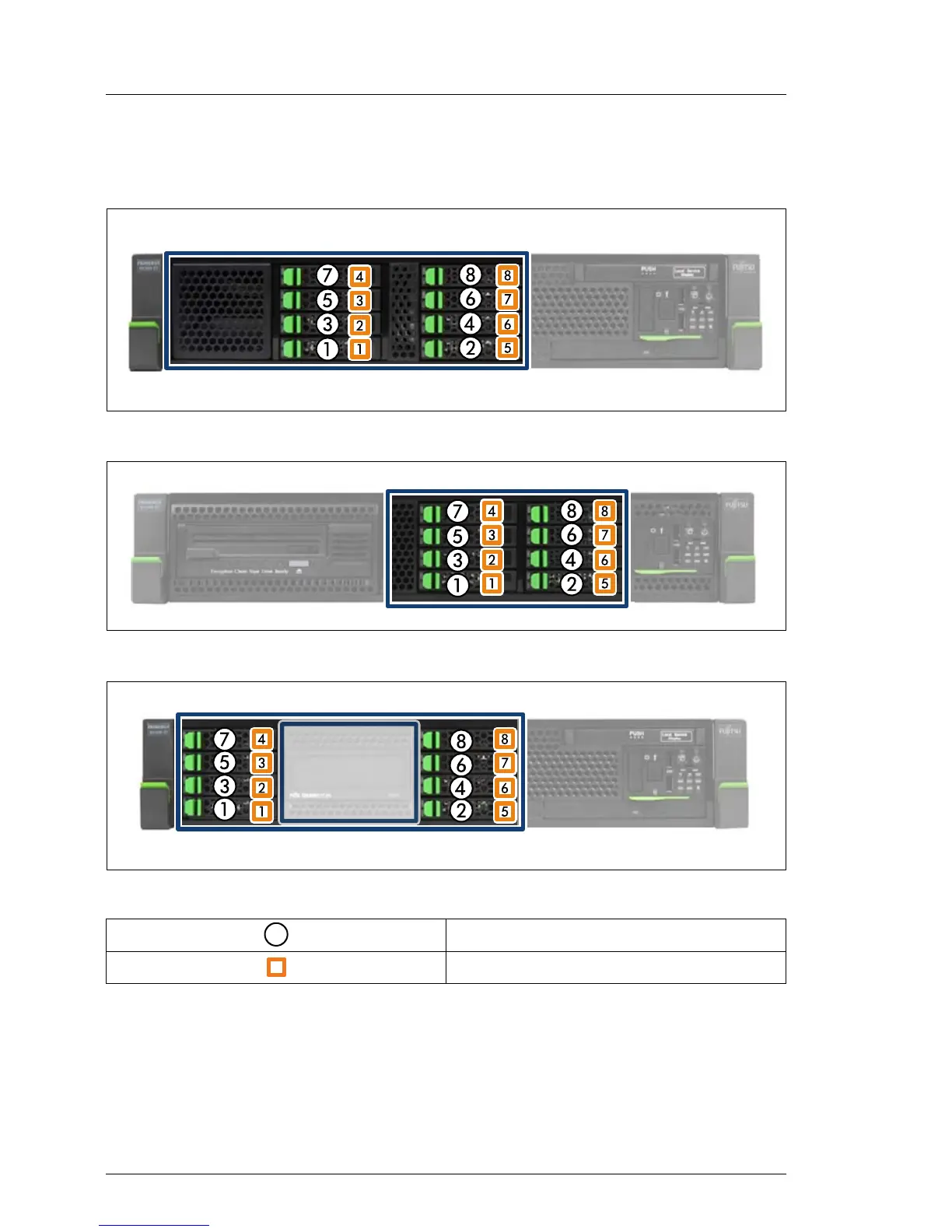

Figure 30: 2.5-inch HDD / SSD mounting order configuration 4
Figure 31: 2.5-inch HDD / SSD mounting order configuration 6
Figure 32: 2.5-inch HDD / SSD mounting order configuration 5
7.2.1.4 HDD / SSD naming scheme for 8x 2.5-inch HDD / SSD
configurations
I The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
Mounting order
Bay number
