RX2520 M1
Upgrade and Maintenance Manual 369
System board and components
14.6.3 Installing the system board
14.6.3.1 Mounting the system board

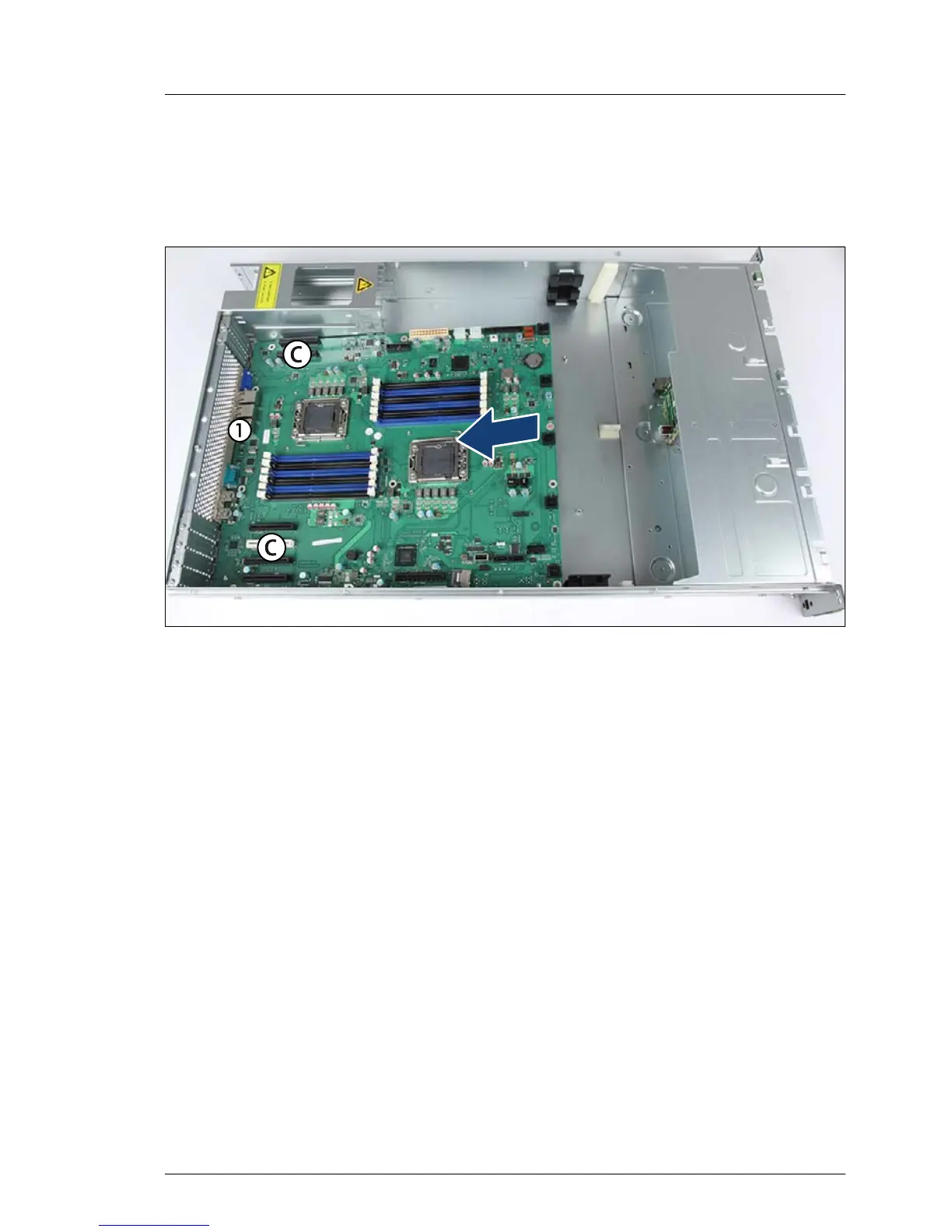

Figure 249: Installing the system board
Ê Hold the new system board by the memory module ejectors and a PCI slot.
V CAUTION!
Do not lift or handle the system board by any of its heat sinks!
Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis.
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel (1).
Ê Lower the system board onto the centering bolts (C).
Ensure that the system board is properly seated on both centering bolts.
