116 Upgrade and Maintenance Manual
RX2520 M1
Power supply units
6.6.4 Installing the power backplane

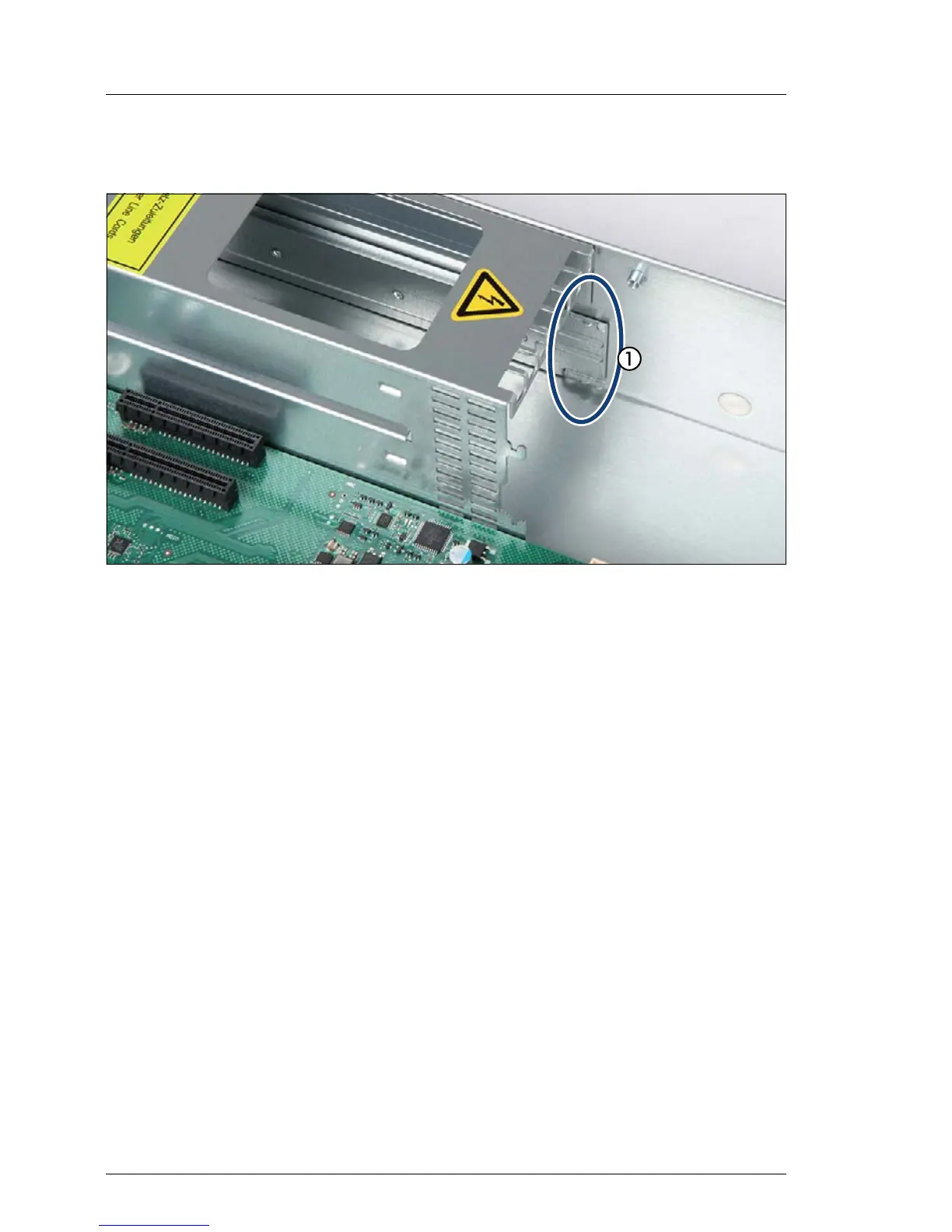

Figure 25: Installing the power backplane (A)
Ê Insert the new power backplane into the guiding hooks of the chassis (1).
