RX2520 M1
Upgrade and Maintenance Manual 115
Power supply units

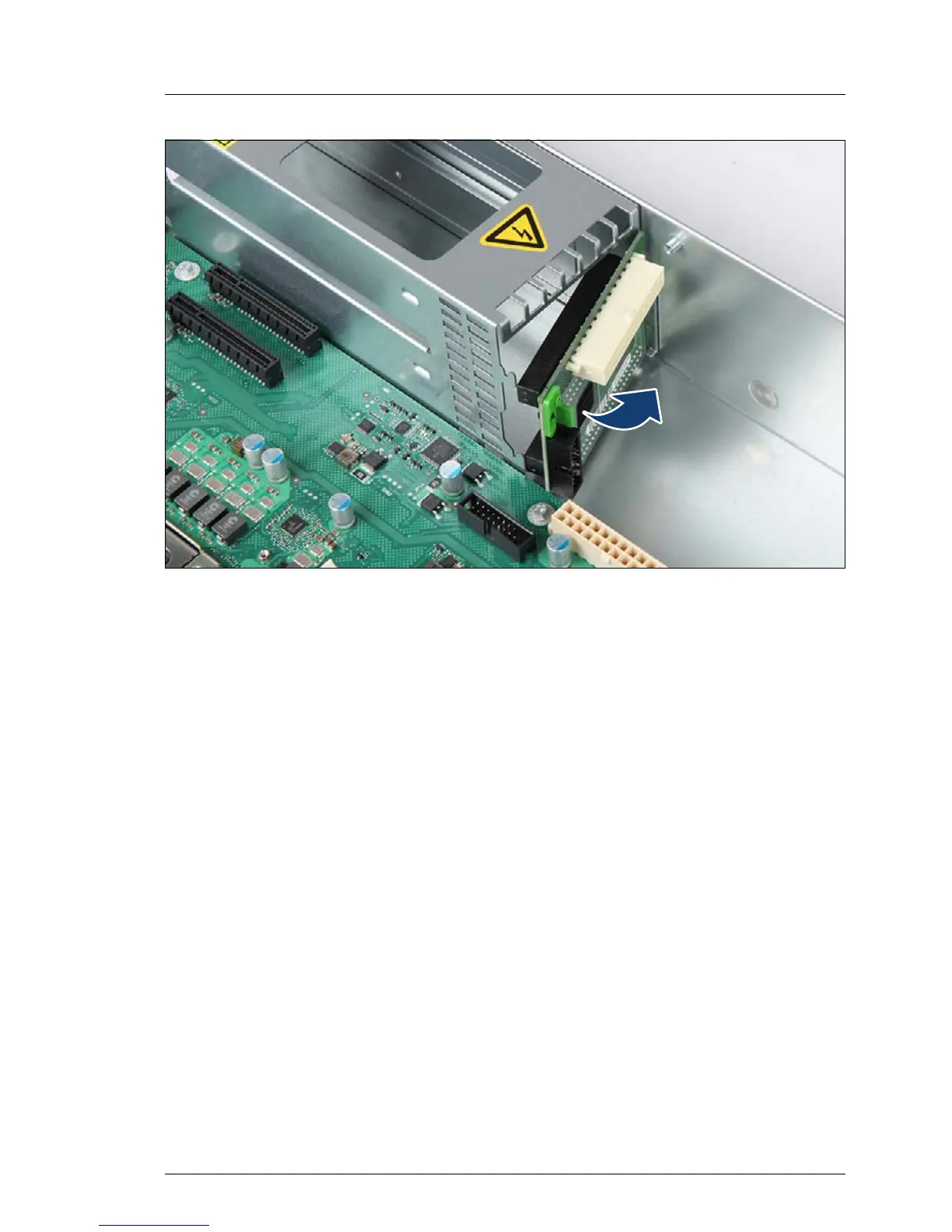

Figure 24: Removing the power backplane (B)
Ê Fold the power backplane in the direction of the arrow.
Ê Push the power backplane upward.
Ê Remove the power backplane.
