Fujitsu PRIMERGY RX2520 M1 - Installing a LTO Drive in the Cage

RX2520 M1 Upgrade and Maintenance Manual 297
Accessible drives
Ê Remove the four screws.
Ê Pull out the tape drive dummy module.
12.10.4 Installing a LTO drive in the cage

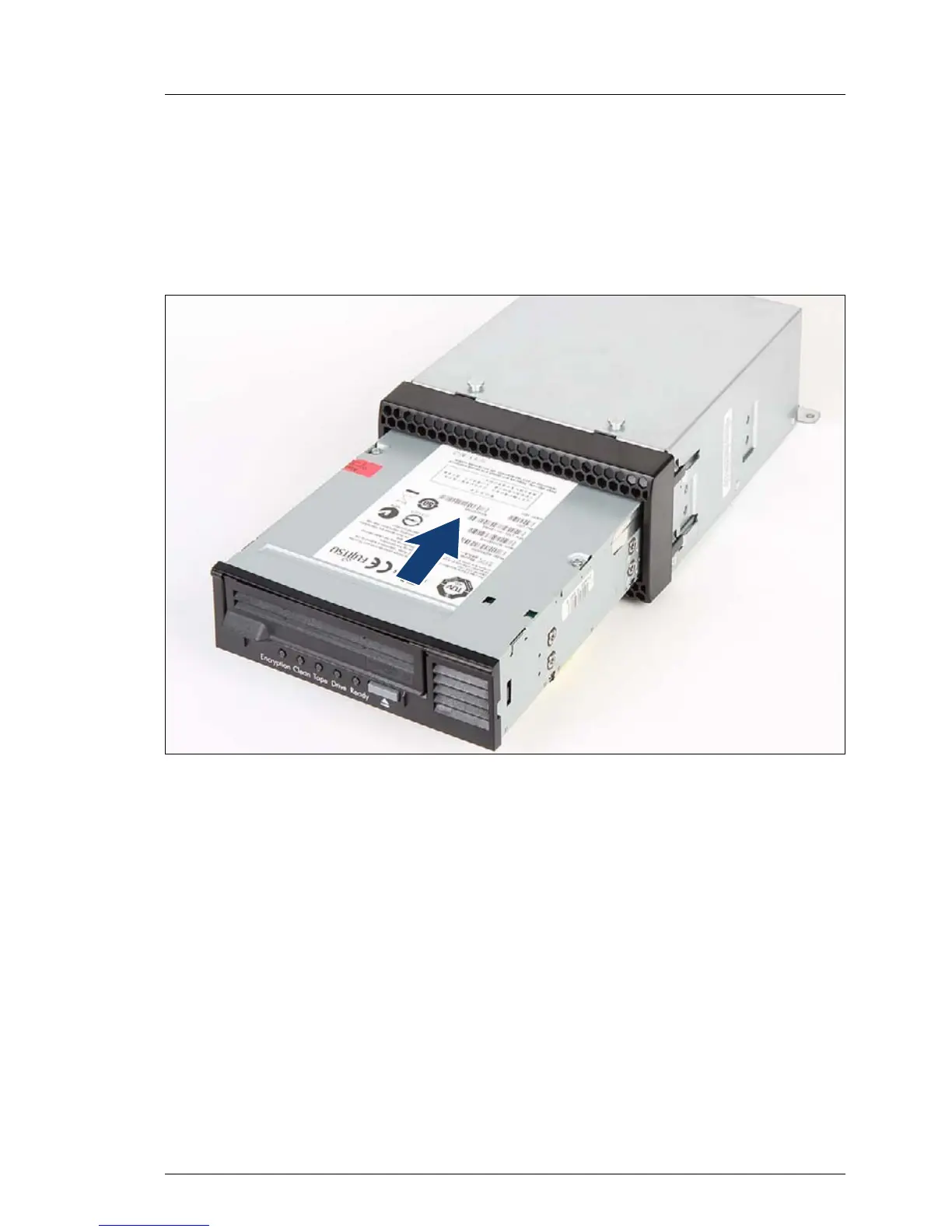

Figure 190: Inserting the LTO drive
Ê Insert the LTO drive into the bay and push in.
